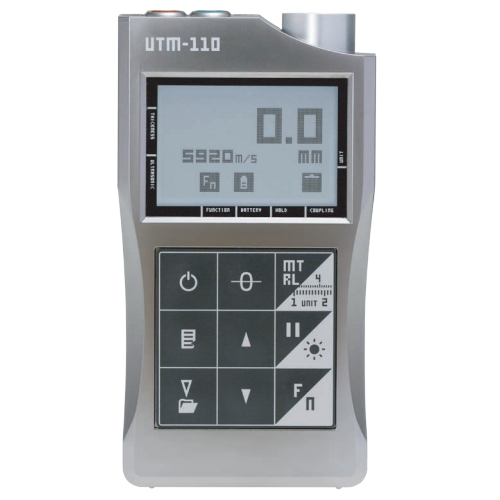

Tokyo Keiki Portable Ultrasonic Thickness Gauge UTM-110
The Tokyo Keiki Portable Ultrasonic Thickness Gauge UTM-110 is a compact, rugged handheld gauge engineered for fast, accurate thickness measurement in the field. Designed for inspectors and maintenance teams, it blends Tokyo Keiki’s long experience in ultrasonic measurement with an ergonomic body, simple operation and reliable data-handling features.
Key features of the Tokyo Keiki Portable Ultrasonic Thickness Gauge UTM-110 include:
-
Ergonomic, grip-focused design for comfortable one-handed use and reduced operator fatigue.
-
Large, easy-to-read display and oversized keypad for intuitive operation.
-
Hold function that keeps the reading on-screen even when the probe is lifted from the test surface.
-
Built-in data logger with time-stamped storage of up to 1,000 readings and USB export for PC reporting.
-
Direct-recall material sound-velocity presets and automatic sensitivity adjustment to speed setup.
-
Powered by a single AA alkaline battery for 50+ hours of continuous operation;
supports a wide array of optional probes and per-probe measurement modes.
Technical specifications (Tokyo Keiki Portable Ultrasonic Thickness Gauge UTM-110):
-
Measurement method: Pulse-echo (R-B1) — bottom-surface first echo.
-
Probe frequency: ≈5 MHz (dual-element).
-
Measurement rate: 2 readings/sec (approx. 0.5 s per reading).
-
Repeatability: ±0.1 mm.
-
Display resolution: 0.1 mm.
-
Sound velocity range: 1000–19,999 m/s.
-
Data logger: up to 1,000 timestamped records; PC connection via USB.
-
Operating temp.: −10 to 50 °C.
-
Power: 1 × AA alkaline battery (≈50+ hours continuous).
-
Size / Weight: 69 × 127 × 24 mm; ≈165 g (excl. battery & probe).
Why choose the Tokyo Keiki Portable Ultrasonic Thickness Gauge UTM-110?
It’s built for everyday inspection work: fast readings, dependable accuracy, long battery life and simple data export for reporting. The ergonomic form and hold/data-logging features make it especially useful for routine corrosion checks, maintenance inspections and quality-control tasks where speed and repeatability matter.
To learn more about the Tokyo Keiki Portable Ultrasonic Thickness Gauge UTM-110 — including optional probe models, per-probe measurement modes, datasheets and pricing — contact Melink Automation or let me know and I’ll prepare a ready-to-send product sheet for you.
