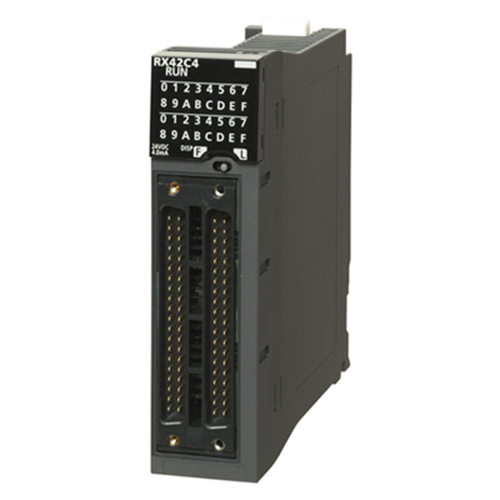

Mitsubishi PLC Input Module RX42C4
Product Overview：
The Mitsubishi iQ-R RX42C4 is a high-performance 64-point DC input module designed for use in Mitsubishi PLC systems. It is part of the iQ-R series and offers reliable DC input capabilities with shared positive/negative common terminals, ideal for industrial automation applications requiring stable and precise signal input.
Key Features of the RX42C4:
-
64 Input Points:
The RX42C4 offers 64 DC input points, allowing it to handle a large number of signals effectively.
-
Input Type:
The RX42C4 supports positive and negative common terminals, providing versatility in wiring and installation.
-
Rated Input Voltage:
Designed to operate at DC 24V, the RX42C4 accommodates a voltage range of DC 20.4V to 28.8V, ensuring reliable performance across different voltage conditions.
-
Fast Response Time:
The RX42C4 delivers quick signal processing, essential for applications requiring prompt and accurate responses.
-
Noise Immunity:
With the ability to withstand up to 1500V P-P noise, the RX42C4 is highly resistant to electromagnetic interference (EMI), making it suitable for challenging industrial environments.
-
Compact and Lightweight Design:
Measuring 106mm (H) x 27.8mm (W) x 110mm (D) and weighing 0.13kg, the RX42C4 is designed for easy installation in confined spaces.
-
Insulation and Protection:
The RX42C4 features AC 510V rms insulation and insulation resistance of over 10MΩ, ensuring safe operation. It is also rated IP2X, protecting against ingress of solid objects larger than 12.5mm.
-
Low Power Consumption:
The RX42C4 operates with a typical power consumption of 180mA (DC 5V) when all points are active, making it an energy-efficient choice.
-
Interrupt Functionality:
The RX42C4 includes an interrupt function, which can be configured through the CPU module for event-driven processing.
Applications:
The RX42C4 is ideal for large-scale industrial automation systems where multiple DC input points are necessary, such as in manufacturing facilities, control centers, and automation systems. Its support for both positive and negative common terminals, combined with its noise immunity and compact design, makes the RX42C4 well-suited for use in demanding industrial conditions.
By incorporating the Mitsubishi RX42C4 into your automation setup, you ensure robust, high-speed, and flexible input handling, enhancing the overall performance and reliability of your systems.
