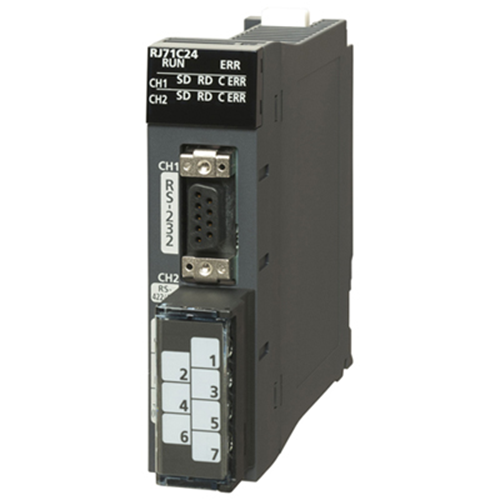

Mitsubishi PLC Network Module RJ71C24
Product Overview：
The Mitsubishi PLC Network Module RJ71C24 is a versatile serial communication module from Mitsubishi's iQ-R series, designed to support multiple protocols and high-speed data transfer. The RJ71C24 module is equipped with RS-232 and RS-422/485 interfaces, making it ideal for industrial applications where robust, long-distance communication is required.
Key Product Features:
-
Dual Communication Channels:
- Channel 1 (CH1): RS-232 interface (D-sub 9P female), suitable for one-to-one communication.
- Channel 2 (CH2): RS-422/485 interface (dual-block terminal), supporting one-to-one, one-to-many, or many-to-one communication. The RJ71C24 can handle a variety of communication setups, providing flexibility in different environments.
-
Multiple Communication Protocols:
- The RJ71C24 supports MC protocol, communication protocol, no protocol, and bidirectional communication, offering flexibility for different communication needs and easy integration into existing systems.
-
High-Speed Data Transfer:
- The RJ71C24 offers baud rates ranging from 1200 bps to 230400 bps, ensuring fast and reliable data transmission across connected devices.
-
Flexible Data Formats:
- Configurable for 7 or 8 data bits, 1 or 2 stop bits, and optional parity checks, the RJ71C24 ensures compatibility with a variety of devices and systems.
-
Extended Communication Range:
- The RJ71C24 supports communication distances up to 15 meters for RS-232 and up to 1200 meters for RS-422/485, making it perfect for long-distance communication in industrial settings.
-
Compact and Lightweight Design:
- Dimensions: 106mm (H) x 27.8mm (W) x 110mm (D), allowing easy installation in compact spaces.
- Weight: 0.16kg, making the RJ71C24 lightweight and easy to handle.
Applications:
The RJ71C24 is suitable for industries requiring stable, long-distance serial communication between devices such as sensors, HMIs, and other automation equipment. Its support for both RS-232 and RS-422/485 makes it a flexible choice for various communication setups, ensuring seamless integration into existing systems.
With the RJ71C24, you can ensure efficient, high-speed communication between devices, improving overall system performance and connectivity.
