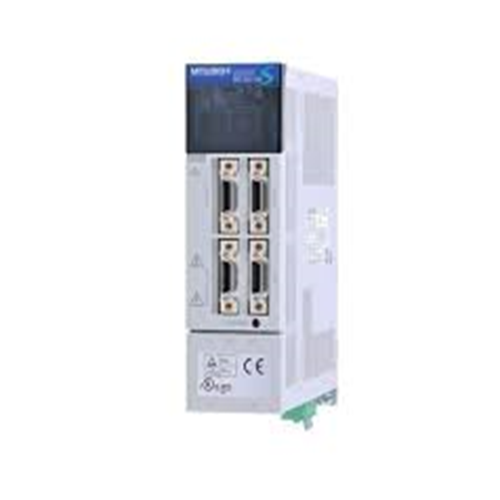

Mitsubishi Servo Drive MR-J2S-10B
The Mitsubishi MR-J2S-10B is an advanced SSCNET interface servo amplifier from the MELSERVO-J2-Super series, engineered for high-performance industrial automation applications. The MR-J2S-10B delivers exceptional precision and reliability, making it ideal for demanding motion control systems.
Key Features:
-
Rated Output Power: 0.2 kW
-
Voltage Supply Options:
- Three-Phase: AC 200V
- Single-Phase: AC 230V
-
SSCNET Interface:
- High-Speed Communication: The MR-J2S-10B enables rapid communication cycles with a minimum of 0.888 ms, facilitating efficient and accurate data transfer between the controller and the servo amplifier.
- Simplified Integration: The MR-J2S-10B features dedicated cables for straightforward connection to the controller, reducing routing time and minimizing noise interference.
-
Motor Compatibility:
- Motor Series: The MR-J2S-10B is compatible with low inertia, medium capacity motors, with a rated output of 50.0 kW and a rated speed of 2000 RPM.
- Brushless Motor Characteristics: Motors used with the MR-J2S-10B are compact, lightweight, and offer high output with fast response and stable torque. These motors are designed for minimal maintenance and high efficiency.
-
Control and Synchronization:
- Resolution: The MR-J2S-10B supports high-resolution encoding, providing precise command control with no limit on command frequency.
- Absolute Value System: The MR-J2S-10B can be configured for absolute positioning using a simple battery addition, ensuring accurate positioning in complex systems.
-
Applications:
- The MR-J2S-10B is well-suited for applications such as material handling systems, industrial robots, and X-Y working tables.
- It is designed to deliver high performance in environments requiring precise and reliable motion control.
-
Environmental and Design Specifications:
- IP Rating: The MR-J2S-10B has an IP67 rating (excluding the shaft part), providing excellent protection against dust and water ingress.
- Weight: The MR-J2S-10B is compact and lightweight, weighing only 0.7 kg.
- Motor Maintenance: The motors paired with the MR-J2S-10B feature low electromagnetic radiation, high efficiency, and a long operational life.
Additional Features:
- Motor Selection Software (MRZJW3-MOTSZ111E):
- User-Friendly Interface: The MR-J2S-10B is supported by software that simplifies the selection of servo amplifiers and motors by inputting mechanical parameters and operation modes.
- Graphical Displays: Provides visual representations of feed speed and torque, aiding in optimal selection and system configuration.
- Calculation Assistance: The software includes tools for calculating the power requirements of servo motors, enhancing the selection process for the MR-J2S-10B.
The Mitsubishi MR-J2S-10B servo drive is designed to offer high-speed, reliable control in complex applications, combining advanced features and ease of integration to meet the needs of sophisticated industrial automation systems.
