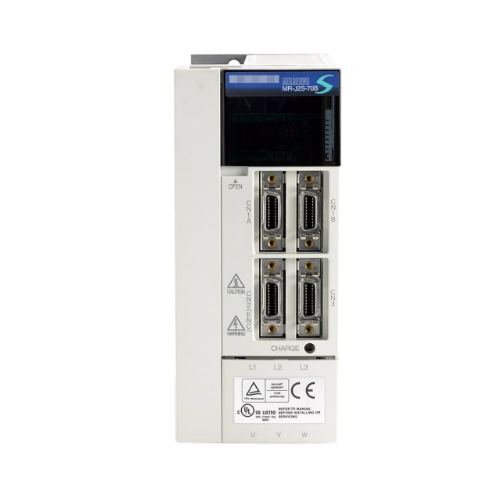

Mitsubishi Servo Drive MR-J2S-70B

The MITSUBISHI MR-J2S-70B is an advanced SSCNET interface servo amplifier from the MELSERVO-J2-Super series, designed for high-performance motion control applications. This model features a rated output of 0.6 kW and operates with a voltage of 3-phase AC 200VAC or single-phase AC 230V. The MR-J2S-70B excels in complete synchronization systems, utilizing high-speed serial communication to ensure optimal performance and reliability. With a maximum communication cycle of just 0.888 ms, the MR-J2S-70B is capable of displaying real-time data on the motion controller, enhancing the overall efficiency of the system.

The MR-J2S-70B is equipped with advanced features, including a high-resolution encoder (131072 pulses/rev) that ensures excellent low-speed performance and stability. This servo amplifier is ideal for ultra-high-frequency transmission machinery and is built for versatile applications, including injection molding machines and semiconductor manufacturing equipment. With its robust design, compact dimensions, and flexibility, the MITSUBISHI MR-J2S-70B meets the demanding requirements of modern industrial automation.

Product Description

Mitsubishi Servo Drive MR-J2S-70B

Product Description

The Mitsubishi MR-J2S-70B is an advanced SSCNET interface servo amplifier, part of the highly acclaimed MELSERVO-J2-Super series. With a rated output of 0.6 kW, this servo amplifier is designed to enhance the performance of automation systems across various industrial applications. It operates efficiently on a 3-phase AC200VAC or single-phase AC230V power supply, making it versatile for diverse settings.

Key Features:

High-Speed Communication: The MR-J2S-70B utilizes a complete synchronization system with SSCNET high-speed serial communication, offering a maximum communication cycle of 0.888 ms. This rapid exchange of information between the controller and the servo amplifier ensures high reliability and superior performance.
Simplified Installation: This model features a straightforward connection process through dedicated cables, minimizing installation time and reducing the likelihood of electrical noise interference. This is particularly beneficial in complex motion systems where precision is critical.
Motor Specifications: The MR-J2S-70B supports various motor types, including ultra-low inertia motors, making it suitable for high-frequency operations. It features a rated output power of 5.0 kW and a rated speed of 3000 r/min. Additionally, it includes an electromagnetic brake for enhanced safety.
Durable Design: The MR-J2S-70B boasts a protection level of IP65 (IP67), allowing it to function in a variety of environmental conditions. Its maintenance-free, brushless motor design contributes to high efficiency and a longer lifespan, making it a reliable choice for continuous operations.
High-Resolution Encoder: Equipped with a high-resolution encoder (131072 p/rev), the MR-J2S-70B ensures excellent performance and stability, particularly at low speeds. This encoder provides feedback to the driver, allowing precise adjustments based on the feedback and target values.

Applications:

The MR-J2S-70B is ideal for a wide range of applications, including:

Ultra High Frequency Transmission Machinery: The amplifier's capabilities make it suitable for applications requiring rapid and precise movements.
Injection Molding Machines: It provides excellent control over injection speeds and positions, ensuring consistent product quality.
Robotic Automation: The precise control and feedback mechanisms make the MR-J2S-70B perfect for robotic arms and other automation tasks.
Semiconductor Manufacturing: The high accuracy and reliability of the MR-J2S-70B support delicate processes in semiconductor production.

Technical Specifications:

Model: MR-J2S-70B
Brand: MITSUBISHI
Type: SSCNET Interface Servo Amplifier
Rated Output: 0.6 kW
Voltage: 3-phase AC200VAC or single-phase AC230V
Cable Length: 10 m (for MR-J2S-700A / CP / CL or less)
Rated Speed: 3000 r/min
Protection Level: IP65 (IP67)
Motor Series: HA-SE series
Electromagnetic Brake: Yes

The Mitsubishi MR-J2S-70B is a sophisticated servo drive that not only meets the rigorous demands of modern automation but also sets a new standard in servo technology. Its combination of speed, precision, and durability makes it an excellent choice for industries looking to optimize performance and efficiency in their systems.
