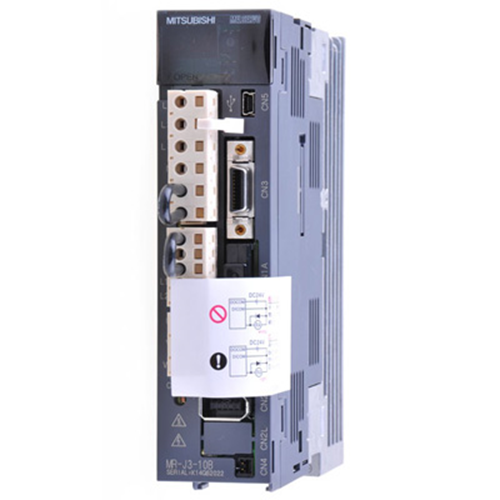

Mitsubishi Servo Drive MR-J3-10B
The Mitsubishi Servo Drive MR-J3-10B is a compact and efficient servo amplifier designed to deliver precise motion control for small-scale applications. Part of Mitsubishi’s renowned MELSERVO-J3 series, it integrates advanced servo technology and features to meet the demands of high-speed and high-precision systems in a wide range of industries.
Key Features:
-
High-Speed Communication: The MR-J3-10B uses the SSCNETⅢ interface, providing fast and accurate communication between the servo amplifier and controllers. This ensures superior synchronization and real-time feedback for enhanced performance in multi-axis systems.
-
Versatile Voltage Support: It operates on three-phase or single-phase AC200~230V, making it versatile for different industrial power setups, reducing the need for multiple models and simplifying installation.
-
Compact and Lightweight: With a power capacity of 0.1kW and a weight of just 0.8 kg, the MR-J3-10B is designed for applications where space and weight are critical, such as in small machines or robotic arms.
-
Advanced Protection and Reliability: Built with numerous protection functions like overcurrent, overvoltage, and overheating safeguards, it ensures reliable operation and long-term durability even in demanding environments.
-
Dynamic Braking: The drive includes a built-in dynamic brake, allowing rapid deceleration of the motor in emergency stop situations or for quick positional adjustments.
-
Energy Efficient: Operating with a low power consumption of 30W, it supports energy-saving initiatives, reducing overall operating costs for equipment.
Applications:
The MR-J3-10B is ideal for:
- Small robotic systems
- Precision machinery such as CNC machines
- Packaging equipment
- Semiconductor manufacturing
- Automated production lines requiring delicate and high-speed movements
Performance and Control:
- Capacity: The MR-J3-10B is designed to control small motors with a power rating of 0.05kW or 0.1kW, suitable for highly sensitive tasks.
- Precise Control: Utilizing advanced sine wave PWM control and a dynamic feedback loop, the servo drive ensures optimal positioning and torque accuracy, making it perfect for industries requiring micro-scale precision.
Environmental Resistance:
- Designed for indoor use, the MR-J3-10B can operate at ambient temperatures ranging from 0°C to 55°C and withstands moderate levels of vibration, making it durable in industrial environments.
Summary:
The Mitsubishi MR-J3-10B Servo Drive is a powerful yet compact solution for industries that require high precision, speed, and efficiency in controlling small servo motors. Its robust design, advanced communication capabilities, and extensive protection functions make it an ideal choice for a wide range of modern automation systems.
