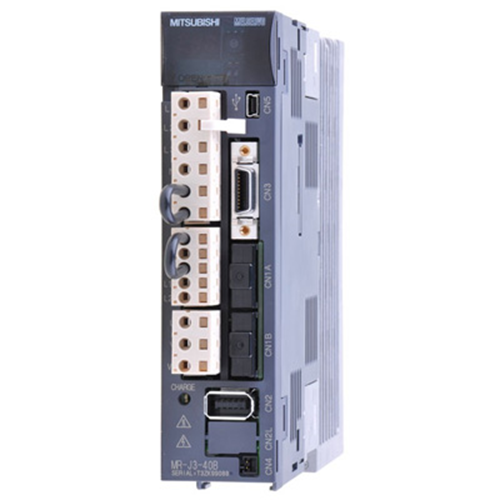

Mitsubishi Servo Drive MR-J3-40B
The Mitsubishi MR-J3-40B Servo Drive is a powerful and versatile servo amplifier from Mitsubishi’s advanced MELSERVO-J3 series, designed for precise control of servo motors in a wide range of automation systems. It offers exceptional performance for applications that demand speed, accuracy, and reliability.
Key Specifications:
- Series: MELSERVO-J3
- Motor Output Power: 0.4kW
- Voltage Class: 200V
- Rated Output Current: 2.8A
- Main Power Supply:
- Three-phase AC200~230V, 50/60Hz or Single-phase AC230V, 50/60Hz
- Rated current: 2.6A
- Power capacity: 0.9kVA
Key Features:
-
Advanced Communication Interface: The MR-J3-40B supports SSCNETⅢ, allowing for high-speed and synchronized communication between the servo amplifier and other control devices, ensuring precise coordination in multi-axis systems.
-
Flexible Power Input: Compatible with both three-phase AC200~230V and single-phase AC230V, this drive offers flexibility for various installation environments and reduces the need for multiple models.
-
Dynamic Braking: The drive is equipped with a built-in dynamic brake, providing rapid stopping capability for the servo motor when required, making it suitable for high-performance applications.
-
Efficient Power Consumption: With a low power consumption of 30W in the control circuit and 150mA for I/O interfaces, the MR-J3-40B is energy efficient, contributing to reduced operational costs.
-
Robust Protection Functions: The MR-J3-40B includes several protection mechanisms, such as overcurrent, regenerative overvoltage, overload, and servo motor overheat protection. These features ensure safe and reliable operation, even in challenging environments.
Applications:
- Robotic Systems: Perfect for controlling motors in industrial robots where high precision and speed are crucial.
- Precision Machinery: Widely used in CNC machines, semiconductor manufacturing, and other equipment requiring accurate motion control.
- Automated Production Lines: Ensures synchronized and smooth motion for complex automation systems.
Environmental and Structural Design:
- Self-Cooling: The MR-J3-40B is self-cooled, ensuring efficient thermal management even during prolonged operation.
- Compact and Lightweight: Weighing only 1.0kg, this servo drive is compact, making it easy to install in confined spaces.
- Durability: Operates in temperatures ranging from 0~55°C, and in environments with relative humidity below 90%, ensuring reliability in various industrial settings.
Why Choose the Mitsubishi MR-J3-40B?
- High-Performance Control: Delivers precise control over small to medium motors, ensuring optimal performance in automation systems.
- Reliable and Safe Operation: With multiple protection features, the MR-J3-40B guarantees safe and uninterrupted operation, even under stressful conditions.
- Energy Efficiency: Designed to minimize power consumption, making it a cost-effective choice for long-term use.
Conclusion:
The Mitsubishi MR-J3-40B Servo Drive is the ideal solution for industries requiring high-precision motor control. Its advanced features, such as high-speed communication, dynamic braking, and comprehensive protection functions, make it a reliable and efficient choice for a variety of automation applications, from robotics to precision machinery.
