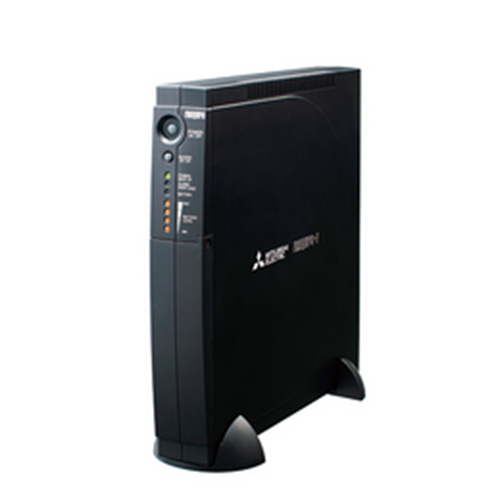

Mitsubishi UPS FW-F10H-0.3K Basic Information
- Model Number: FW-F10H-0.3K
- Overview: The FW-F10H-0.3K is a compact and basic UPS model that is ideal for use with Mitsubishi Programmable Logic Controllers (PLCs), providing reliable power management features and flexibility.
Features:
Power Management Functions
The FW-F10H-0.3K from the FREQUPS FW-F series delivers robust power management functions to support safe and reliable system operations:
-
UPS Shutdown: After the automatic shutdown of the connected computer, the FW-F10H-0.3K itself can also automatically shut down.
-
Computer Shutdown via UPS Power Switch OFF:
- By turning OFF the power switch or using the remote ON/OFF input terminal, the operating system (OS) can automatically shut down. This functionality is seamlessly integrated into the FW-F10H-0.3K.
- When combined with the "UPS Shutdown Function," the FW-F10H-0.3K performs a complete sequence of actions: power switch OFF → OS shutdown → UPS shutdown.
-
Reboot Function During Power Restoration:
- The FW-F10H-0.3K can automatically reboot the connected computer if power is restored after the OS shutdown has begun but before the UPS itself has shut down.
Installation Flexibility
- The FW-F10H-0.3K offers flexible installation options, allowing it to be placed either horizontally or vertically to accommodate different space requirements. The left side (or bottom surface) includes three screw holes for easy attachment to a panel using tapping screws (5x8mm).
- Note: Correct screw length must be used to prevent internal damage. The FW-F10H-0.3K attachment method is not suitable for locations requiring seismic resistance.
MELSEC Series Compatibility
- The FW-F10H-0.3K can be easily configured for Mitsubishi PLC compatibility by adjusting the DIP switch on the back of the unit.
- Tested for Rectangular Wave Output: The FW-F10H-0.3K has been verified to work with rectangular wave output.
- Compatible with iQ-R Series: The FW-F10H-0.3K is also fully tested and compatible with the iQ-R series of Mitsubishi PLCs.
External Interface
- For shutdown operations, the FW-F10H-0.3K includes both RS232C and USB connectors, allowing users to select the most appropriate interface for their system (both cannot be used simultaneously).
The FW-F10H-0.3K provides comprehensive power management and compatibility with Mitsubishi PLCs, making it a highly versatile and dependable solution for industrial and automation applications.
