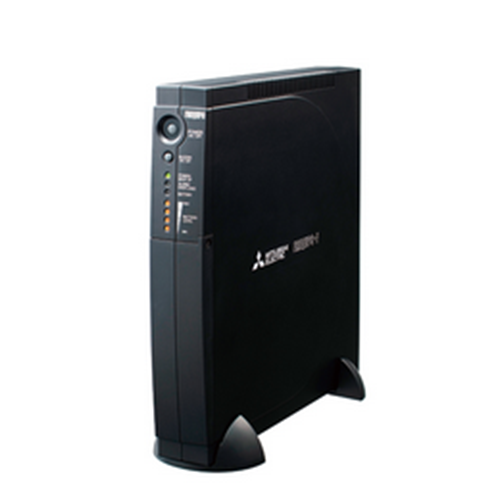

Mitsubishi UPS FW-F10H-0.5K Basic Information
- Model Number: FW-F10H-0.5K
- Overview: The FW-F10H-0.5K is a compact and basic Uninterruptible Power Supply (UPS) model, specifically designed for Mitsubishi Programmable Logic Controllers (PLCs), providing reliable power management and operational stability.
Features:
Power Management Functions
The FW-F10H-0.5K offers advanced power management features to ensure smooth and reliable system operation.
-
UPS Shutdown: After the connected computer automatically shuts down, the FW-F10H-0.5K can also perform an automatic shutdown, safeguarding the entire system.
-
Computer Shutdown via UPS Power Switch OFF:
- By turning off the power switch or using the remote ON/OFF input terminal, the operating system (OS) connected to the FW-F10H-0.5K can automatically shut down.
- In combination with the "UPS Shutdown Function," the FW-F10H-0.5K ensures a seamless sequence of actions: power switch OFF → OS shutdown → UPS shutdown.
-
Reboot Function During Power Restoration:
- If power is restored after the OS shutdown has started but before the FW-F10H-0.5K itself shuts down, the connected computer can automatically reboot.
Installation Flexibility
- The FW-F10H-0.5K can be installed either horizontally or vertically, depending on space requirements. There are three screw holes on the left side (or bottom surface) for panel attachment using tapping screws (5x8mm).
- Note: Ensure proper screw length is used to avoid damaging the FW-F10H-0.5K. This attachment method is not suitable for locations requiring seismic resistance.
MELSEC Series Compatibility
- The FW-F10H-0.5K is fully compatible with Mitsubishi PLCs, including the MELSEC series, through simple DIP switch configuration on the back of the unit.
- Tested for Rectangular Wave Output: The FW-F10H-0.5K has been thoroughly tested for rectangular wave output, ensuring smooth operation.
- iQ-R Series Compatibility: The FW-F10H-0.5K has been verified for compatibility with the iQ-R series.
External Interface
- The FW-F10H-0.5K includes RS232C and USB connectors for shutdown operations, allowing users to choose the interface that best suits their needs (both cannot be used simultaneously).
The FW-F10H-0.5K delivers a robust, flexible, and reliable power management solution for systems requiring stable operation and seamless integration with Mitsubishi PLCs.
