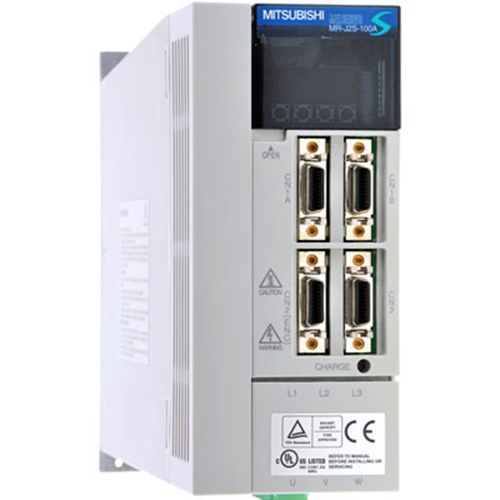

Mitsubishi Servo Drive MR-J2S-100A

The Mitsubishi MR-J2S-100A servo drive is part of the MELSERVO-J2S series, delivering advanced servo control technology to a wide range of industrial applications. This servo drive operates with a power input of three-phase AC200~230V, offering reliable and high-precision motion control. Equipped with a sine-wave PWM control and current control method, the MR-J2S-100A ensures smooth and accurate motor operations.

Product Description

Mitsubishi Servo Drive MR-J2S-100A

The Mitsubishi Servo Drive MR-J2S-100A is a high-performance servo amplifier designed for precision control in industrial automation systems. As part of Mitsubishi’s renowned MELSERVO-J2S series, the MR-J2S-100A offers superior control features and reliable operation, making it suitable for demanding applications. With a power supply range of three-phase AC200~230V, the drive is equipped with advanced sine-wave PWM control for smooth and precise motor operation.

Detailed Specifications:

Power Supply

Voltage/Frequency: Three-phase AC 200~230V, 50/60Hz
Allowable Voltage Fluctuation: Three-phase AC170~253
Allowable Frequency Fluctuation: ±5%

Control Method

Sine Wave PWM Control, Current Control Method

Dynamic Braking

Built-in Dynamic Braking

Protection Functions

Overcurrent, Regenerative Braking Overvoltage, Overload (Thermal Relay)
Servo Motor Overheat, Encoder Fault, Regenerative Braking Fault
Undervoltage, Momentary Power Loss, Overspeed, Excessive Error

Speed Frequency Response

Above 550Hz

Position Control Mode

Maximum Input Pulse Frequency: 500kpps (Differential Input), 200kpps (Open Collector Input)
Command Pulse Ratio: Electronic Gear A/B Ratio, A=1~~65535, B=1~~65535, 1/50 < A/B < 500
Position Completion Pulse Width Setting: 0~±10000 Pulses (Command Pulse Unit)
Excessive Error: ±10 Revolutions
Torque Limit: Set via Parameters or External Analog Input (DC 0V~+10V/Maximum Torque)

Speed Control Mode

Speed Control Range: Analog Speed Command 1:2000, Internal Speed Command 1:5000
Analog Speed Command Input: DC 0V~±10V/Rated Speed
Speed Variation: ±0.01% or less (Load Variation: 0%~100%), 0% (Power Variation ±10%) ±0.2% or less (Ambient Temperature: 25±10℃) Applicable for Analog Speed Command Only
Torque Limit: Set via Parameters or External Analog Input Command (DC 0V~+10V/Maximum Torque)

Torque Control Mode

Analog Speed Command Input: DC 0V~±8V/Maximum Torque (Input Impedance: 10kΩ~12kΩ)
Speed Limit: Set via Parameters or External Analog Input Command (DC 0V~+10V/Maximum Rated Torque)

Structure

Self-cooling, Open (IP00) (10~200)
Weight: 1.7kg

Environmental Specifications

Operating Temperature: 0~+55℃ (Non-freezing); Storage Temperature: -20~+60℃ (Non-freezing)
Ambient Humidity: 90% RH or less (Non-condensing)
Air Conditions: Indoor (No direct sunlight), Free from corrosive gases, combustible gases, oil mist, and dust
Altitude: Below 1000 meters
Vibration: 5.9 m/s² or less

The Mitsubishi servo drive MR-J2S-100A, renowned for its superior control and performance, is an integral component of the Mitsubishi MR-J2S-100A series, specifically engineered to meet the rigorous demands of advanced automation applications. As a key player in the MELSERVO-J2S lineup, the MR-J2S-100A excels in delivering precise and reliable motion control, ensuring optimal performance across a variety of complex tasks.
