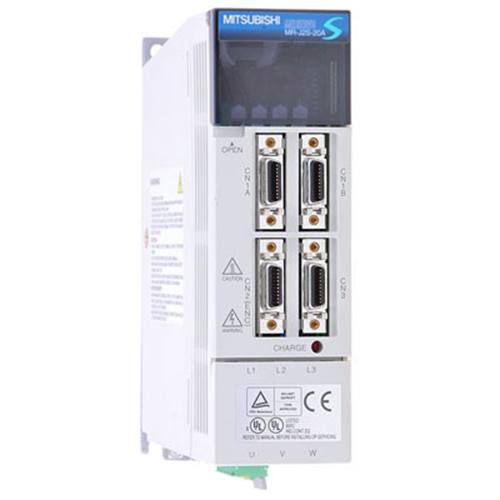

Mitsubishi Servo Drive MR-J2S-20A

The Mitsubishi Servo Drive MR-J2S-20A is an advanced servo drive from Mitsubishi's MELSERVO J2S series, known for its robust performance and versatility in various industrial automation applications. This model is engineered to deliver precise control and reliable operation, making it ideal for applications demanding high accuracy and efficiency. The MR-J2S-20A is designed to accommodate a broad range of power configurations, supporting both three-phase and single-phase power supplies. Its robust control system utilizes sine wave PWM and current control, ensuring smooth and accurate motion.

Product Description

Mitsubishi Servo Drive MR-J2S-20A

The Mitsubishi MR-J2S-20A is a high-quality servo drive from the MELSERVO J2S series, renowned for its exceptional performance and reliability in demanding automation environments. Designed to deliver precision control and robust operation, the MR-J2S-20A meets a broad range of industrial needs.

Key Specifications:

Power Supply:
- The MR-J2S-20A is designed to handle frequency fluctuations within ±5%.
Control System:
- Employing sine wave PWM and current control, the MR-J2S-20A ensures smooth and accurate motion control.
- It includes dynamic braking capabilities for efficient deceleration.
Protection Features:
- The MR-J2S-20A features comprehensive protection against overcurrent, regenerative brake overvoltage, overload (thermal relay), motor overheating, encoder errors, regenerative brake issues, undervoltage, momentary power loss, overspeed, and excessive deviation.
Speed and Position Control:
- The MR-J2S-20A supports high-frequency input pulses with flexible electronic gear ratios and precise positioning capabilities, including settings for pulse width and maximum deviation.
- For speed control, the MR-J2S-20A offers a wide range of options, accommodating minimal fluctuation under varying load conditions.
Torque Control:
- The MR-J2S-20A provides precise torque management through analog input, with settings adjustable via parameters or external analog input.
Design and Construction:
- The MR-J2S-20A features a self-cooling design with open construction (IP00), ensuring reliable performance even in challenging environments.
- It weighs 0.7 kg, making it lightweight and easy to integrate into compact installations.
Environmental Conditions:
- The MR-J2S-20A operates effectively within a temperature range of 0 to +55°C (non-freezing) and can be stored in temperatures from -20 to +60°C (non-freezing).
- It functions in environments with up to 90% RH (non-condensing).
- Designed for indoor use, the MR-J2S-20A avoids exposure to corrosive gases, flammable gases, oil mist, and dust.
- It is suitable for operation up to 1000 meters above sea level and can withstand vibrations up to 5.9 m/s².

The Mitsubishi MR-J2S-20A servo drive is a reliable and versatile component, ideal for applications requiring high precision and durability in various industrial automation settings.
