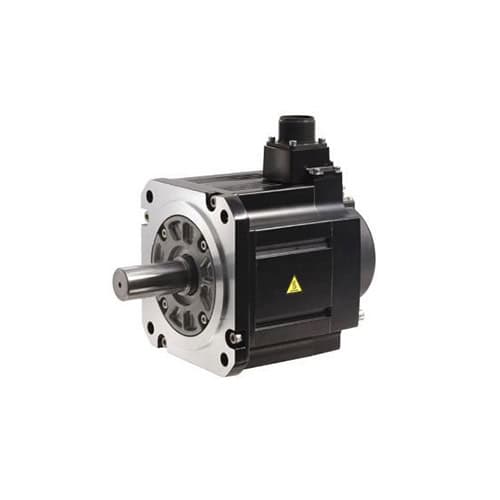

Mitsubishi Servo Motor HG-SR1024B
The Mitsubishi Servo Motor HG-SR1024B is a high-performance servo motor designed to excel in demanding industrial applications. As part of the MELSERVO-J4 series, the HG-SR1024B combines advanced technology with robust features to deliver outstanding precision and reliability.
Key Features:
- Series: MELSERVO-J4
- Interface Compatibility: The HG-SR1024B is compatible with various interfaces including CC-Link IE, SSCNETⅢ/H, and general-purpose interfaces. This versatility ensures seamless integration with different control systems.
- Voltage Class: Operates at 400V, making it suitable for high-power applications.
- Continuous Characteristics:
- Rated Output: 1.7 kW
- Rated Torque: 1.0 N·m
- Maximum Torque: 4.8 N·m
- Rated Speed: 2000 r/min
- Maximum Speed: 3000 r/min
- Instantaneous Allowable Speed: 3450 r/min
- Power Rate at Rated Torque: 16.5 kW/s
- Current Ratings:
- Rated Current: 2.8 A
- Maximum Current: 8.9 A
- Regenerative Brake Frequency: 29 RPM
- Inertia Moment (J): 13.8 × 10^-4 kg·m²
- Recommended Load Inertia Ratio: 17 times or less
- Encoder: 22-bit encoder with absolute and incremental modes, providing high resolution of 4,194,304 pulses/rev.
Construction and Design:
- Type: Permanent magnet synchronous motor.
- Oil Seal: Not included, but oil-sealed versions are available (HG-SR_J).
- Thermal Class: 155 (F).
- Enclosure: Totally enclosed fan-cooled (IP67 protection).
- Operating Temperature Range: 0 °C to 40 °C (without freezing).
- Storage Temperature Range: -15 °C to 70 °C (without freezing).
- Operating Humidity Range: 10 %RH to 80 %RH (without condensation).
- Storage Humidity Range: 10 %RH to 90 %RH (without condensation).
- Ambient Conditions: Indoor use, free from corrosive gases, flammable gases, oil mist, and dust.
- Altitude: Up to 2000 m.
- Vibration Resistance: X and Y directions up to 24.5 m/s².
- Weight: 8.2 kg
The Mitsubishi Servo Motor HG-SR1024B provides exceptional performance with its high torque and speed capabilities, making it ideal for precise motion control and demanding industrial environments. The motor’s advanced features, including its high-resolution encoder and robust protection, ensure reliable and efficient operation in various applications.
