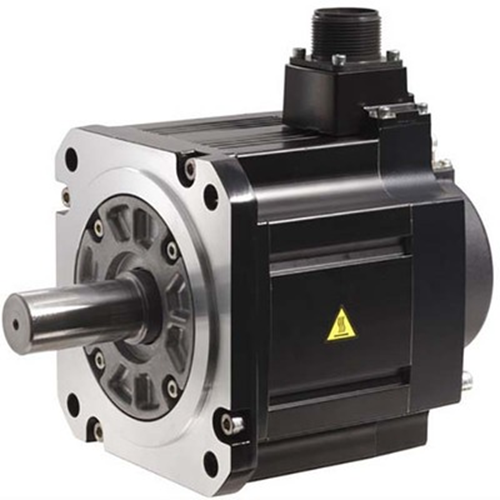

Mitsubishi Servo Motor HG-SR1024BK
The Mitsubishi Servo Motor HG-SR1024BK is a high-performance AC brushless rotary servo motor designed for demanding industrial automation applications. As part of the MELSERVO J4 series, the HG-SR1024BK motor is renowned for its precision, reliability, and advanced technology, making it suitable for a wide range of tasks.
Key Features:
- Motor Type: AC brushless rotary servo motor
- Series: MELSERVO J4
- Model: HG-SR1024BK
- Rated Output: 1000W (1kW)
- Rated Torque: 4.8Nm
- Maximum Torque: 14.3Nm
- Rated Speed: 2000 rpm
- Maximum Speed: 3000 rpm
- Resolution: 22-bit feedback (equivalent to 4194304 pulses per revolution)
- Rated Current: 2.8A
- Supply Voltage: 400Vac class
- Moment of Inertia: 0.00138 kg·m² (13.8 kg·cm²)
- Connection Type: 2 x MS-type connectors
- Mounting: 130x130mm flange mounting
- Degree of Protection: IP67
- Dimensions: H177.5mm x W130mm x D222mm
- Weight: 8.2 kg
- Ambient Temperature for Operation: 0 to +40 °C
- Ambient Temperature for Storage: -15 °C to +70 °C
- Maximum Radial Load: 980 N
- Maximum Axial Load: 490 N
- Maximum Current: 8.9 A
Compliance and Standards:
- CE Marking
- TUV Rheinland
- cULus
- UL
- KC
- EN61800-3
- EN60034-1
- EN62061 SILCL3
- EN50581
- UL1004-1
- UL1004-6
- CSA
- EAC
Recommended Accessories:
- Amplifiers: MR-J4-100GF4, MR-J4-100GF4-RJ, MR-J4-100B4, MR-J4-100B4-RJ, MR-J4-100A4, MR-J4-100A4-RJ
- Encoder Cables: Available in various lengths and bending life options
- Power Supply Cables: Standard and shielded types in various lengths
- Brake Cables: Standard and long bending life options
The HG-SR1024BK motor combines robust construction with advanced features, ensuring exceptional performance and accuracy in industrial settings. Its reliable operation and high precision make the HG-SR1024BK an excellent choice for a variety of automation and control applications.
