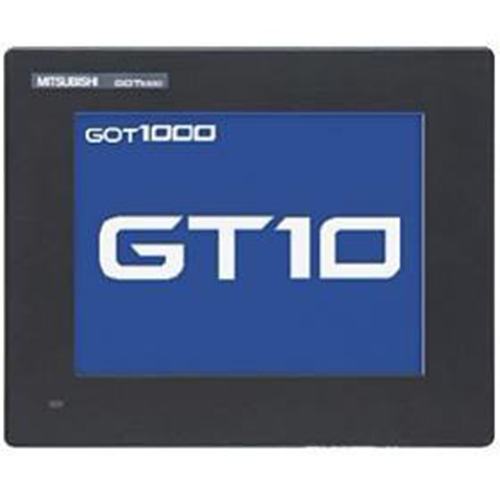

Mitsubishi 5.7-Inch Touch Screen GT1050-QBBD-C
Product Overview
The Mitsubishi touch screen GT1050-QBBD-C is a high-performance human-machine interface device suitable for various industrial automation applications. Its 5.7-inch display and high resolution provide users with a clear operational interface, supporting multiple input and output interfaces for easy connection with PLCs and other control devices.
Main Technical Specifications
- Brand: Mitsubishi
- Model: GT1050-QBBD-C
- Display Size: 5.7 inches
- Display Type: STN Monochrome (Black/White) LCD
- Resolution: 320 * 240 [dot]
- Display Colors: Monochrome (Blue/White) 16 shades of gray
- Panel Protection Level: 67
- Operating Temperature: 100°C
- Input Voltage: 220 V
- Input Method: Touch screen input
- Memory: Below 3MB
- Insulation Resistance: 20 MΩ
- Power Resistance: 29 Ω
- Weight: 1.3 kg
- Dimensions: 164(W) * 135(H) * 56(D) [mm]
- Panel Cutout Dimensions: 153(W) * 121(H) [mm]
Key Features and Characteristics
-
High-Resolution Display:
- 5.7-inch QVGA display with a resolution of 320 * 240 pixels ensures clarity of images and text.
- The display color is monochrome (blue/white) with 16 shades of gray, suitable for various industrial environments.
-
Durability and Reliability:
- The panel protection level reaches IP67, making it dust and waterproof, suitable for harsh industrial environments.
- Insulation resistance and power resistance ensure electrical safety and reliability of the device.
-
Multiple Interface Support:
- Equipped with RS-232/RS-422 interfaces, supporting various communication protocols, making it easy to connect with various PLCs and controllers.
- USB interface for program downloading and data transfer.
-
Easy Installation:
- Dimensions of 164(W) * 135(H) * 56(D) [mm] and panel cutout dimensions of 153(W) * 121(H) [mm], facilitating installation in control panels.
Related Product Models
The GT10 series touch screen products include various models to meet different application needs:
- GT1020-LBL-C: 3.7-inch, STN monochrome (blue/white), powered by PLC programming port, RS-232 download
- GT1030-LBD-C: 4.5-inch, STN monochrome (blue/white), powered by 24V DC, RS-232 download
- GT1050-QBBD-C: 5.7-inch QVGA, STN monochrome 16 shades of gray, powered by 24V DC, with RS-232/422 interface, USB download
- GT1055-QSBD-C: 5.7-inch QVGA, STN 256 colors, powered by 24V DC, with RS-232/422 interface, USB download
Application Scenarios
The GT1050-QBBD-C touch screen is widely used in various industrial automation fields, such as manufacturing, food processing, chemical industry, and energy management. Its high reliability and versatility make it an indispensable part of factory automation control systems.
Certification and Quality Assurance
- Product Certification: CCC
- Quality Assurance: Quality assurance provided by Mitsubishi Electric, ensuring stability and reliability under normal use conditions.
The GT1050-QBBD-C touch screen, with its excellent performance and reliable quality, is an ideal choice for industrial automation control systems. The GT1050-QBBD-C offers robust functionality and ease of use, making it a preferred option in the market. The Mitsubishi GT1050-QBBD-C is a versatile and durable device, perfectly suited for a wide range of industrial applications.
