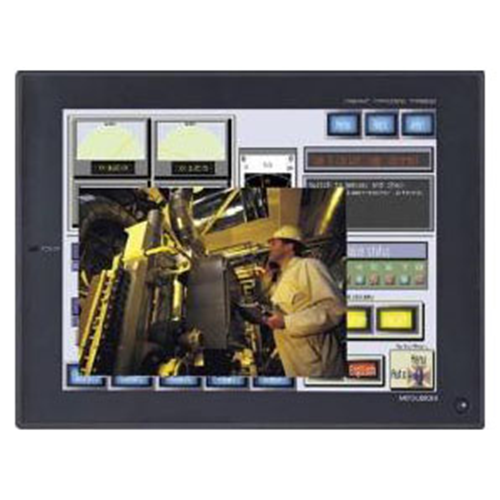

Mitsubishi Touch Screen GT1155-QSBD-C
Overview
The Mitsubishi touch screen GT1155-QSBD-C is a versatile and high-performance human-machine interface (HMI) device designed for a variety of industrial automation applications. This robust HMI offers a clear and user-friendly operational interface, supporting multiple input and output interfaces to seamlessly connect with Programmable Logic Controllers (PLCs) and other control devices. The GT1155-QSBD-C ensures reliable performance and durability, making it a trusted choice for industrial environments.
Key Features
- Display: 5.7-inch STN color LCD with 256 colors, providing sharp and vibrant visuals.
- Resolution: 320*240 [dots], ensuring clear display of information.
- Viewing Angle: 50° left and right, 50° up, and 60° down, allowing visibility from various positions.
- Touch Panel: Capable of handling up to 300 touch keys per screen, with a minimum key size of 16*16 [dots].
- Interfaces: Equipped with RS-422, RS-232, and USB interfaces for versatile connectivity.
Detailed Specifications
Display Section
- Type: STN Color LCD
- Screen Size: 5.7 inches
- Resolution: 320*240 [dots]
- Display Area: 115(W) * 86(H) [mm] (Landscape mode)
- Character Display:
- 16-dot font: 20 characters * 15 lines (full-width)
- 12-dot font: 26 characters * 15 lines (full-width) (Landscape mode)
- Display Colors: 256 colors
- Viewing Angle: 50° left and right, 50° up, 60° down (Landscape mode)
- Contrast Adjustment: 16 levels
- LCD Brightness: 350 [cd/m2]
- Lifespan: Approximately 50,000 hours, guaranteed for 1 year (at 25°C with a contrast ratio of 1/5)
Backlight
- Type: Cold cathode tube (not user-replaceable) with backlight failure detection function
- Settings: Backlight OFF/screen saver time can be set
- Lifespan: Over 75,000 hours (at 25°C, with 50% display brightness)
Touch Panel
- Touch Keys: 300 keys/screen (15 rows * 20 columns matrix structure)
- Key Size: Minimum 16*16 [dots] (per key)
- Simultaneous Touch Points: Up to 2 points
- Lifespan: Over 1 million touches (with an operating force below 0.98N)
Built-in Memory
- C Drive: Built-in flash memory, stores project data (3M bytes) and OS, approximately 100,000 write cycles
- D Drive: Built-in SRAM 512K bytes (battery-backed)
Battery (Optional)
- Model: GT11-50BAT lithium battery
- Backup Data: Clock data, alarm history, recipe data
- Lifespan: Approximately 5 years (at 25°C), guaranteed for 1 year
Built-in Interfaces
- RS-422:
- Standard: Serial RS422
- Channels: 1
- Transfer Speed: 115,200/57,600/38,400/19,200/9,600/4,800bps
- Connector: D-Sub 9-pin (female)
- Usage: Machine communication
- RS-232:
- Standard: Serial RS232
- Channels: 1
- Transfer Speed: 115,200/57,600/38,400/19,200/9,600/4,800bps
- Connector: D-Sub 9-pin (male)
- Usage: Machine communication, barcode reader connection, PC connection (project data upload/download, OS installation, FA transparent transmission)
- USB:
- Standard: Serial USB (full speed 12Mbps)
- Channels: 1
- Usage: PC connection (project data upload/download, OS installation, FA transparent transmission)
Buzzer Output
- Tone: Single-tone (adjustable duration)
Protection Structure
- Rating: Equivalent to IP67f (front panel)
Dimensions
- Overall: 164(W) * 135(H) * 56(D) [mm] (Landscape mode)
- Panel Cutout: 153(W) * 121(H) [mm] (Landscape mode)
- Weight: 0.7 kg (excluding mounting metal parts)
Power Specifications
- Input Voltage: DC24V (+10% -15%), ripple voltage below 200mV
- Power Consumption: Below 9.84W (410mA/DC24V), below 4.32W (180mA/DC24V) with backlight off
- Inrush Current: Below 15A (26.4V) for 2ms
- Allowable Momentary Power Interruption: Within 5ms
- Noise Resistance: Noise voltage 1000Vp-p, noise width 1μs (noise frequency range 30~100Hz)
- Withstand Voltage: AC500V for 1 minute (between power terminals and ground)
- Insulation Resistance: Above 10MΩ (DC500V insulation resistance meter, between power terminals and ground)
- Suitable Wire Size: 0.75~2mm²
- Suitable Crimp Terminal: Crimp terminal for M3 bolts RAV1.25-3, V2-N3A, FV2-N3A
- Suitable Tightening Torque: 0.5~0.8 [N·m] (for terminal block terminal bolts)
Summary
The Mitsubishi touch screen GT1155-QSBD-C is a reliable and efficient solution for industrial automation, offering a wide range of features and robust performance. Its user-friendly interface and extensive connectivity options make it an ideal choice for enhancing operational efficiency in various industrial environments. The GT1155-QSBD-C's durability and high functionality ensure it meets the demands of modern industrial automation systems, providing a seamless and effective human-machine interface. With its advanced features and robust build, the GT1155-QSBD-C stands out as a premier choice for industrial applications.
