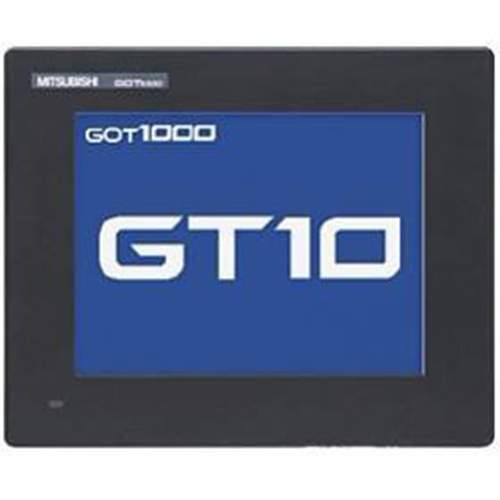

Mitsubishi HMI GT1050-QSBD
Overview
The Mitsubishi GT1050-QSBD is a high-performance 5.7-inch monochrome HMI, specifically engineered for demanding industrial environments. The GT1050-QSBD combines a reliable STN LCD display with extensive functionality to deliver a robust user interface solution. Ideal for various industrial automation applications, the GT1050-QSBD stands out with its clarity and durability.
Key Features
- Display Type: STN Monochrome (Black/White)
- Screen Size: 5.7 inches
- Resolution: QVGA (320 x 240 pixels)
- Display Size: 115 (W) x 86 (H) mm (horizontal display mode)
- Display Characters:
- 16-point standard font: 20 characters x 15 lines (full-width) (horizontal display mode)
- 12-point standard font: 26 characters x 20 lines (full-width) (horizontal display mode)
- Display Colors: 16 shades of gray
- Brightness Adjustment: None
- Maximum Screen Registration: 1024 screens
- Backlight: Cold cathode tube (non-replaceable), with backlight failure detection and settings for backlight OFF/screen saver time
- Backlight Lifetime: Approximately 54,000 hours (at 25°C ambient temperature, with 50% display brightness)
- Backlight Color: White
Touchscreen Specifications
- Touch Panel Type: Matrix resistive membrane
- Number of Touch Keys: Up to 50 per screen
- Key Size: Minimum 16 x 16 pixels (per key)
- Simultaneous Touch Points: Up to 2
- Touch Panel Life: Over 1 million operations (under 0.98 N pressure)
Memory
- Flash Memory:
- Capacity: 3 MB (max)
- Write Life: 100,000 cycles
- Usage: For project data and OS storage
- SRAM:
- Capacity: 128 KB
- Usage: For alarm history, recipe data, time-action settings
- EEPROM:
- Capacity: Not applicable
- Usage: Not applicable
Battery
- Type: GT11-50BAT Lithium Battery
- Backup Functions: Clock data, alarm history, recipe data, time-action settings
- Battery Life: Approximately 5 years (at 25°C ambient temperature)
Communication Interfaces
- RS-232 Interface:
- Channels: 1
- Transmission Speed: 115200/57600/38400/19200/9600/4800 bps
- Connector: D-sub 9-pin (male)
- RS-422/485 Interface:
- Channels: 1
- Transmission Speed: 115200/57600/38400/19200/9600/4800 bps
- Connector: D-sub 9-pin (female)
- Termination Resistor: OPEN/110 Ω/330 Ω (switchable via termination resistor switch)
- RS-422/232 Interface:
- Channels: 1
- Transmission Speed: 115200/57600/38400/19200/9600/4800 bps
- Connector: D-sub 9-pin (female)
- Ethernet Interface:
- USB Interface (Host):
- Channels: 1
- Maximum Transfer Speed: Full-Speed 12 Mbps
- Connector: Mini-B
- Memory Board Interface: Compatible with GT10-50FMB
Additional Specifications
- Switch Specifications:
- Switch 1: None
- Switch 2: None
- Buzzer Output: Single tone (adjustable for long/short/none)
- Mounting Type: Standard
- Protection Structure: IP67F (JEM1030) equivalent (front panel)
- Dimensions: 164 (W) x 135 (H) x 56 (D) mm
- Panel Cutout Dimensions: 153 (W) x 121 (H) mm (horizontal display mode)
- Weight (excluding mounting accessories): 0.7 kg
The Mitsubishi GT1050-QSBD is designed to provide a clear, reliable, and durable user interface in industrial settings. Its versatile features and robust build make the GT1050-QSBD a top choice for effective process management and control. With the Mitsubishi GT1050-QSBD, you can expect high performance and reliability for all your HMI needs.
