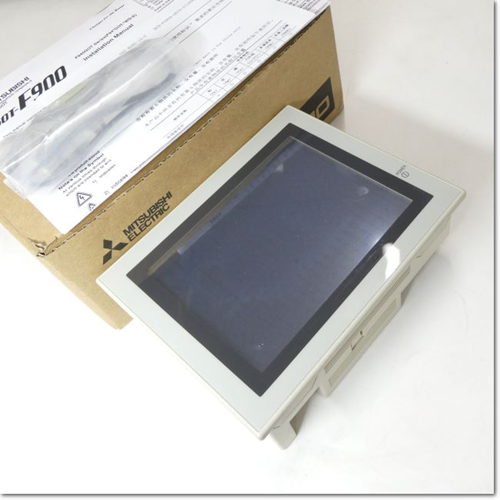

Mitsubishi HMI GT1150-QBBD-C
Overview
The Mitsubishi GT1150-QBBD-C is an advanced human-machine interface (HMI) engineered for industrial automation tasks. Featuring a 5.7-inch STN monochrome LCD, the Mitsubishi GT1150-QBBD-C provides a reliable and effective solution for diverse user-interface applications. This model, the GT1150-QBBD-C, excels in environments requiring high reliability and ease of use. With the Mitsubishi GT1150-QBBD-C, users benefit from its clear display and intuitive controls.
Key Features
- Display Type: STN Monochrome LCD (Black/White) on the GT1150-QBBD-C
- Screen Size: 5.7 inches on the GT1150-QBBD-C
- Resolution: 320 x 240 dots on the GT1150-QBBD-C
- Display Colors: 16-level grayscale on the GT1150-QBBD-C
- Viewing Angle: 45 degrees (left/right), 20 degrees (top), 40 degrees (bottom) in landscape mode on the GT1150-QBBD-C
- Brightness: Not specified for the GT1150-QBBD-C
- Contrast Adjustment: Not specified
Touchscreen Specifications
- Number of Touch Keys: Up to 300 per screen on the GT1150-QBBD-C
- Touch Key Size: Customizable based on application for the GT1150-QBBD-C
- Simultaneous Touch Points: Not specified
- Touch Life: Not specified
Internal Memory
- User Storage: 3 MB flash memory for user data and OS storage on the GT1150-QBBD-C
- Write Life: Not specified
Communication Interfaces
- USB: 1 port on the GT1150-QBBD-C for high-speed serial communication
- Connector: Not specified
- Uses: Data upload/download, peripheral connectivity
Additional Specifications
- Software Compatibility: Not specified
- Buzzer Output: Not specified
- Protection: Not specified
- Dimensions: 135 (H) x 164 (W) x 56 (D) mm
- Panel Cutout Dimensions: 153 x 121 mm
- Weight: 0.7kg (excluding mounting accessories)
Power Specifications
- Input Voltage: Not specified
- Power Consumption: Not specified
- Fuse: Not specified
- Surge Current: Not specified
- Allowable Momentary Power Interrupt: Not specified
- Noise Immunity: Not specified
- Insulation Resistance: Not specified
Summary
The Mitsubishi GT1150-QBBD-C is an efficient and robust HMI that provides an excellent interface for industrial control applications. With its 5.7-inch monochrome display and up to 300 touch keys, the GT1150-QBBD-C is designed to meet the demands of various automation tasks. The inclusion of a USB port on the GT1150-QBBD-C ensures versatile data handling and communication capabilities. The GT1150-QBBD-C is well-suited for environments where reliability and ease of use are paramount.
