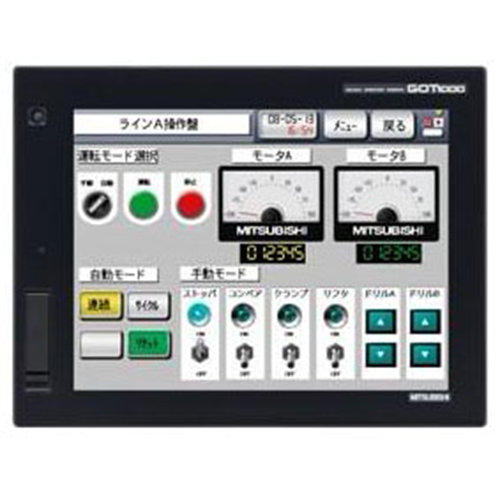

Mitsubishi HMI GT1685M-STBD

The Mitsubishi HMI GT1685M-STBD is a high-performance 12.1-inch touch screen Human-Machine Interface (HMI) designed for advanced industrial automation applications. The GT1685M-STBD features a TFT color LCD display with high brightness and wide viewing angles, providing clear and reliable visual interaction with machinery and processes. It is ideal for use in environments where durability, precision, and ease of use are paramount.

Product Description

Mitsubishi HMI GT1685M-STBD

Overview

The Mitsubishi HMI GT1685M-STBD is a high-performance 12.1-inch touch screen Human-Machine Interface (HMI) designed for advanced industrial automation applications. Featuring a TFT color LCD display with high brightness and wide viewing angles, the Mitsubishi HMI GT1685M-STBD provides clear and reliable visual interaction with machinery and processes. As a part of Mitsubishi's GT series, the GT1685M-STBD is ideal for use in environments where durability, precision, and ease of use are paramount. This HMI enhances operational efficiency by offering exceptional display clarity and robust touch functionality.

Technical Specifications

Display:
- Type: TFT Color LCD
- Size: 12.1 inches
- Resolution: SVGA 800x600 pixels
- Display Dimensions: 246 (W) x 184.5 (H) mm
- Colors: 65,536
- Brightness: 470 cd/m²
- Viewing Angle: 80° (up, left, right), 60° (down)
- Backlight: LED, non-replaceable, with a lifespan of approximately 52,000 hours
Touch Screen:
- Type: Analog Resistive Film
- Key Size: Minimum 2x2 points
- Lifetime: Over 1,000,000 touches (operation force below 0.98N)
- Simultaneous Touch: Not supported
Power Supply:
- Voltage: DC24V (+25%, -20%)
- Consumption: Below 40W (normal), Below 26W (background light off)
- Inrush Current: Below 12A (55ms, max load)
- Allowable Momentary Power Loss: Within 10ms
Connectivity:
- RS-232: D-sub 9-pin (Male), Baud rate up to 115200 bps
- RS-422/485: 14-pin (Female), Baud rate up to 115200 bps
- Ethernet: RJ-45, 10BASE-T/100BASE-TX
- USB (Host): USB-A, Full-Speed 12Mbps, FAT16 (Max 2GB), FAT32 (Max 32GB)
- USB (Device): USB Mini-B, Full-Speed 12Mbps
- CF Card Slot: Type I, FAT16 (Max 2GB), FAT32 (Max 32GB)
User Memory:
- Capacity: 15MB built-in flash
- Write Lifetime: 100,000 cycles
Battery:
- Type: GT15-BAT Lithium Battery
- Lifetime: Approximately 5 years (at 25°C)
Clock Accuracy:
- Precision: 3.47~8.38 seconds per month (at 25°C)
Environmental and Durability Features:
- Protection: IP67F (front), IP2X (panel interior)
- Temperature Range: Operating temperature not specified, generally suited for industrial environments
- Shock and Vibration Resistance: Designed for industrial use with adequate shock and vibration resistance
Weight:
- Excluding Mounting Accessories: 2.7 kg

Key Features

High Brightness and Clarity: The 12.1-inch TFT LCD screen of the GT1685M-STBD offers clear and vibrant display quality, essential for precise control and monitoring in various lighting conditions.
Robust Touch Interface: The analog resistive touch screen of the Mitsubishi HMI GT1685M-STBD ensures reliable input even in harsh industrial environments.
Flexible Connectivity: Multiple communication interfaces, including RS-232, RS-422/485, Ethernet, USB, and CF card, provide versatile integration with other equipment and systems.
Long-Lasting Performance: The unit is built with a high-quality LED backlight and durable touch screen, offering a long operational lifespan and minimizing maintenance needs.

Applications

The Mitsubishi HMI GT1685M-STBD is suitable for a wide range of industrial applications, including:

Manufacturing Automation: Controls and monitors machinery, processes, and production lines.
Process Control: Interfaces with industrial processes for real-time data visualization and control.
Building Automation: Manages and controls building systems such as HVAC, lighting, and security.

Summary

The Mitsubishi HMI GT1685M-STBD is a versatile and durable HMI solution that offers high-resolution display, extensive connectivity options, and robust performance for demanding industrial environments. Its advanced features and reliability make the GT1685M-STBD an excellent choice for enhancing operational efficiency and user interaction in various automation and control applications.
