Mitsubishi HMI GT1685M-STBA
Overview

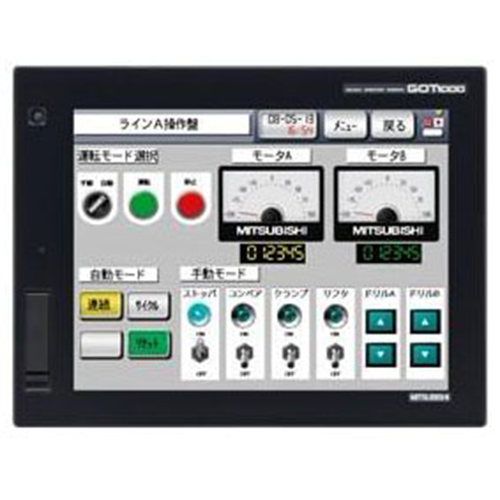

The Mitsubishi GT1685M-STBA is a high-end Human-Machine Interface (HMI) touchscreen designed for advanced industrial automation applications. As part of Mitsubishi Electric's GT1600 series, it builds upon the capabilities of the earlier GOT-A900 and GT1500 series, offering enhanced features, greater storage capacity, and improved usability. The GT1685M-STBA is ideal for users seeking robust performance and versatility in demanding environments.
Key Features
- Large Storage Capacity: The GT1685M-STBA boasts an impressive user memory capacity of 15MB, upgradable to 57MB, providing ample space for complex projects and data storage.
- Advanced Display: Featuring a 12.1-inch high-brightness, wide-view TFT color LCD screen with 65536 colors and a resolution of 800x600 (SVGA), the GT1685M-STBA ensures clear and vibrant visual outputs.
- Rich Interfaces: The GT1685M-STBA comes with built-in Ethernet, RS-422/485, and RS-232 interfaces, enabling simultaneous connections to multiple FA devices.
- Upgraded Touch Panel: The analog touch panel offers clear display quality without any grid lines, enhancing user interaction.
Specifications
Display
- Type: High-brightness, wide-view TFT color LCD
- Screen Size: 12.1 inches
- Resolution: 800x600 (SVGA)
- Display Colors: 65536 colors
- Viewing Angle: 80° left/right, 80° up, 60° down
- Brightness: 470 cd/m²
- Brightness Adjustment: 8 levels
- Lifetime: Approximately 52,000 hours
- Screen Count: 2096 screens
Backlight
- Type: LED (non-replaceable)
- Lifetime: Around 60,000 hours (at 50% brightness, 25°C ambient temperature)
- Color: White
Touchscreen
- Type: Analog resistive
- Minimum Key Size: 2x2 mm
- Multi-touch: Not supported
- Lifetime: Over 1 million touches (operating force below 0.98N)
Human Detection
- Detection Distance: 1 meter
- Detection Range: 70° left/right
- Detection Delay: 0-4 seconds
Memory (Flash)
- Capacity: Built-in 15MB
- Lifetime: 100,000 cycles
- Usage: Storage for project data and OS
- Flash Memory: Built-in 57MB
Battery
- Type: GT15-BAT Lithium battery
- Lifetime: Approximately 5 years (ambient temperature 25°C)
Built-in Interfaces
- RS-422/485
- Channels: 1
- Baud Rates: 115200/57600/38400/19200/9600/4800 bps
- Connector: 14-pin (female)
- Usage: Device communication
- RS-232
- Channels: 1
- Baud Rates: 115200/57600/38400/19200/9600/4800 bps
- Connector: D-sub 9-pin (male)
- Usage: Machine communication, PC connection
- Ethernet
- Type: 100BASE-TX, 10BASE-T 1 channel
- Connector: RJ-45
- Usage: Device communication, gateway function, PC connection
- USB (Device)
- Max Speed: 12 Mbps
- Channels: 1
- Connector: USB Mini-B
- Usage: PC connection
- USB (Host)
- Max Speed: 12 Mbps
- Channels: 1
- Connector: TYPE-A
- Usage: Data transfer, storage
- CF Card
- Standard: Flash memory card slot
- Channels: 1
- Connector: TYPE I
- Usage: Data storage, transfer, GOT startup
- Option Function Board: 1 channel for MES interface function
- Expansion Interface: 2 channels for communication unit/optional unit installation
Additional Features
- Buzzer Output: Single tone (adjustable duration)
- Protection Structure: Front panel meets IP67F standards, internal panel meets IP2X (JEM1030)
- Panel Cutout Size (W x H): 302 x 228 mm
- Weight (excluding mounting accessories): 2.7 kg
Power Supply
- Cooling Method: Natural convection
- Input Voltage: AC 100-240V (+10%/-15%)
- Frequency: 50/60Hz ±5%
- Max Apparent Power: 110VA (at maximum load)
- Power Consumption: Typically 46W, 32W with backlight off
- Inrush Current: Below 28A (4ms)
- Instantaneous Power Interruption: Within 20ms (for AC 100V or higher)
- Noise Immunity: Noise voltage 1500Vp-p, noise width 1μs, via noise simulator with noise frequency 25-60Hz
- Withstand Voltage: AC 1500V for 1 minute between power terminals and ground
- Insulation Resistance: Over 10MΩ at DC 500V between power terminals and ground
Replacement and Supplier Information
- Replacement Product: GT2712-STBA
The Mitsubishi GT1685M-STBA is an advanced, reliable HMI solution for various industrial automation needs. For pricing and supplier details, please contact authorized Mitsubishi distributors. The GT1685M-STBA ensures seamless integration and enhanced performance, making it a preferred choice for many industries.
