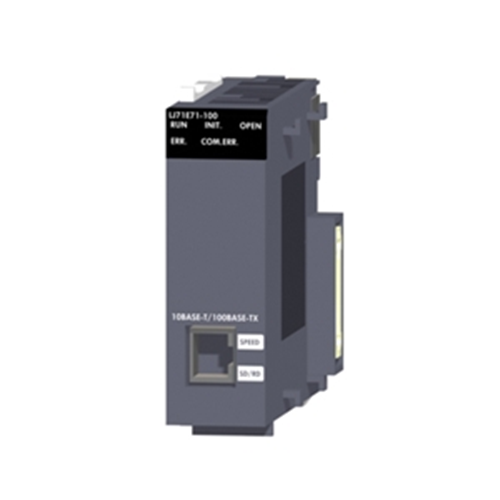

Mitsubishi PLC Ethernet Interface Unit LJ71E71-100-CM
Product Overview:
The Mitsubishi PLC Ethernet Interface Unit LJ71E71-100-CM is a highly efficient communication module that provides seamless Ethernet connectivity for Mitsubishi MELSEC series PLCs. Designed to support fast and reliable data transfer, the LJ71E71-100-CM enhances system integration across various industrial automation environments. This module is essential for applications requiring high-speed communication and robust performance, making it a popular choice for industries that demand top-tier networking solutions.
Key Features:
- High-Speed Ethernet Communication: The LJ71E71-100-CM supports 100BASE-TX (100 Mbps) and 10BASE-T (10 Mbps) transmission speeds, allowing efficient and stable data flow between PLCs and other Ethernet-enabled devices.
- Versatile Protocol Compatibility: This unit works with TCP/IP, UDP, and MELSOFT protocols, providing a flexible solution for connecting Mitsubishi PLCs to SCADA systems, HMIs, and other industrial devices.
- Flow Control: The LJ71E71-100-CM employs IEEE802.3 for full-duplex transmission and backpressure congestion control for half-duplex, ensuring smooth data transmission even under heavy network loads.
- Auto MDI/MDI-X Support: The LJ71E71-100-CM automatically detects whether a crossover or straight-through cable is used, simplifying setup and reducing installation time.
- Email Functionality: The unit can send email alerts with attachments of up to 960 words, enabling real-time monitoring and remote communication.
- Durable and Compact Design: The LJ71E71-100-CM is designed for easy installation with its compact size and lightweight structure, making it an ideal choice for tight spaces in industrial settings.
Technical Specifications:
- Data Transmission Speed:
- 100BASE-TX: 100 Mbps
- 10BASE-T: 10 Mbps
- Communication Mode:
- 100BASE-TX: Full Duplex / Half Duplex
- 10BASE-T: Half Duplex
- Interface: RJ45 (Auto MDI/MDI-X)
- Maximum Segment Length: 100 meters (between hub and node)
- Send/Receive Data Storage Memory:
- Fixed Buffer: 1K words × 16
- Random Access Buffer: 6K words × 1
- Power Consumption: DC5V, 0.60 A internal current consumption
- Physical Dimensions:
- Height: 90 mm
- Width: 28.5 mm
- Depth: 95 mm
- Weight: 0.18 kg
Applications:
The LJ71E71-100-CM is perfect for factory automation, process control, and data acquisition systems. It enables reliable, high-speed communication across industrial networks, ensuring that devices remain well-integrated into the overall control system. Thanks to its advanced capabilities, the LJ71E71-100-CM is essential for industries that rely on Mitsubishi PLC systems, offering improved operational control and efficiency.
