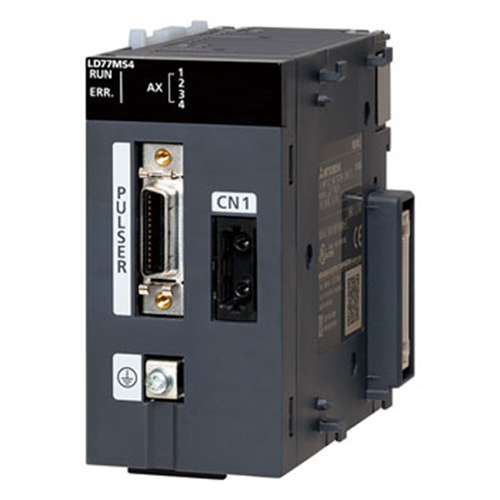

Mitsubishi PLC Simple Motion Module LD77MS4
Product Overview:
The Mitsubishi LD77MS4 is a sophisticated 4-axis simple motion module designed for the Mitsubishi L-series PLCs, featuring SSCNET III/H connectivity. This module offers a range of advanced motion control functions and precision features ideal for various industrial automation applications.
Key Features:
-
Axis Control: Supports up to 4 axes, including virtual servo axes, enabling effective control of complex motion tasks.
-
Interpolation Functions: Provides linear interpolation for up to 4 axes and 2-axis circular interpolation, ensuring precise motion trajectories.
-
Control Methods: Includes positioning control, trajectory control, speed control, and switching modes for versatile motion management.
-
Synchronization Control: Offers advanced synchronization capabilities with encoder inputs, cam profiles, phase correction, and automatic cam generation.
-
Control Units: Allows for control in millimeters (mm), inches (inch), degrees (degree), and pulses (PLS), accommodating various measurement requirements.
-
Positioning Data: Manages up to 600 data points per axis, ensuring detailed and accurate positioning control.
-
SSCNET III/H Connection: Utilizes the high-speed SSCNET III/H communication protocol for efficient and reliable servo amplifier connections.
Additional Features of the LD77MS4:
-
Speed/Position Switching: The LD77MS4 supports speed-position switching and position-speed switching for versatile control options.
-
Speed and Torque Control: Features speed control, torque control, and pressure control functions with the LD77MS4 for enhanced motion management.
-
Emergency Stop and Limiting Functions: Equipped with emergency stop, software stroke limit, and hardware stroke limit functions in the LD77MS4 for safety.
-
Data Monitoring and Communication: The LD77MS4 offers mark detection, data monitoring, driver communication, and digital oscilloscope functions.
Unit Specifications of the LD77MS4:
-
Servo Amplifier Connection: SSCNET III/H
-
I/O Occupation Points: 32 points allocated for intelligent function units
-
Unit Slot Occupation: 2 slots
-
DC5V Internal Power Consumption: 0.55A
-
Weight: 0.22 kg
-
Dimensions (H x W x D): 90 mm x 45 mm x 95 mm
Overview:
The Mitsubishi LD77MS4 module is a powerful and versatile solution for precise motion control within Mitsubishi L-series PLC systems. With its support for up to 4 axes, advanced interpolation functions, and reliable SSCNET III/H connectivity, the LD77MS4 ensures accurate and flexible motion management for a range of industrial applications. Its comprehensive features and robust performance make the LD77MS4 an essential component for modern automation systems.
