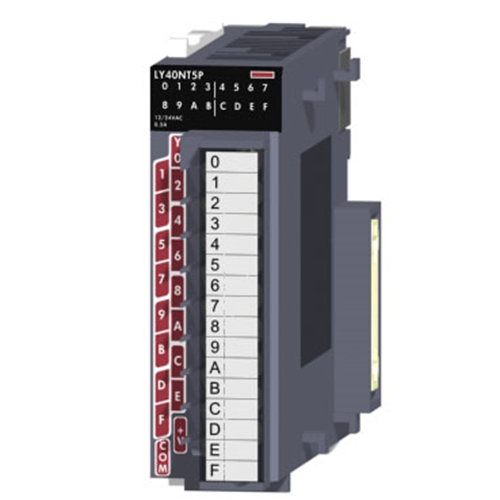

Mitsubishi PLC Output Module LY40NT5P-CM
Product Overview:
The Mitsubishi LY40NT5P-CM is a 16-point DC transistor sink output module engineered for use with Mitsubishi L-series PLCs. LY40NT5P-CM provides reliable and efficient control for a variety of automation applications, offering advanced features to ensure optimal performance in industrial environments.
Key Features:
- Output Type: Transistor sink type, designed for precise and efficient control.
- Output Points: 16 points, allowing for extensive control capabilities in a single module.
- Rated Load Voltage: DC10.2V to DC28.8V, providing flexibility for different application requirements.
- Maximum Load Current:
- Per Point: 0.5A
- Per Common Terminal: 5A
- Maximum Inrush Current: Includes overload protection with current limiting to ensure reliable performance.
- Leakage Current When OFF: 0.1mA or less, minimizing unwanted current flow.
- Maximum Voltage Drop When ON:
- Typical: DC0.2V at 0.5A
- Maximum: DC0.3V at 0.5A, ensuring minimal power loss.
- Output Response Time:
- OFF→ON: 0.5ms or less
- ON→OFF: 1ms or less (with rated load and resistive load), enabling quick switching.
- Surge Suppressor: Equipped with a Zener diode for protecting against voltage spikes.
- Fuse: None required, simplifying maintenance and operation.
- Protection Functions:
- Overheat Protection: Prevents damage from excessive temperatures.
- Overload Protection: Features a current limit of 1.5A or more per point to protect against overcurrent conditions.
- External Supply Voltage: DC12/24V (Ripple rate within 5%, allowable voltage range DC10.2V to DC28.8V).
- External Supply Current: 9mA (at DC24V), ensuring efficient power usage.
- Output Common Method: 16 points with 1 common terminal for streamlined wiring.
- Insulation Resistance: 10MΩ or more, ensuring effective isolation between circuits.
- Insulation Withstand Voltage: AC510V for 1 minute (at altitude of 2000m), providing robust protection.
- Protection Rating: IP2X, safeguarding the module from dust and other particles.
- External Wiring Connection Method: 18-point screw terminal block (M3 screws) for secure connections.
- I/O Occupation Points: 16 points (I/O allocation: 16 output points).
- DC5V Internal Power Consumption: 100mA, reflecting efficient power use.
Physical Dimensions:
- Height (H): 90 mm
- Width (W): 28.5 mm
- Depth (D): 117 mm
- Weight: 0.15 kg
Overview:
The LY40NT5P-CM output module offers high-performance control with its fast response times and robust protection features. Its compact size and flexible voltage range make it a versatile choice for enhancing the control and efficiency of Mitsubishi L-series PLC systems. Designed to withstand demanding industrial environments, the LY40NT5P-CM ensures reliable operation and ease of integration into various automation applications.
