Mitsubishi PLC CC-Link Transistor Leakage Output Module AJ65SBTB3-16D

The Mitsubishi PLC CC-Link Transistor Leakage Output Module AJ65SBTB3-16D is a versatile and reliable input/output module designed for use in industrial automation systems. It features 16 input points and supports DC 24V input, with optocoupler insulation for enhanced safety and durability. The module operates within a voltage range of DC19.2V to DC26.4V and can handle a maximum of 100% simultaneous input points, making it suitable for high-demand environments.

The AJ65SBTB3-16D also includes a 16-point common terminal configuration and has a low response time of 1.5ms, ensuring quick and efficient data transmission. Its noise immunity is robust, withstanding high levels of simulated noise, and it offers excellent dielectric strength with an AC500V rating for reliable performance in harsh conditions.

Designed for easy installation and maintenance, the AJ65SBTB3-16D features DIN rail compatibility and supports a wide range of wire sizes, with a weight of just 0.25kg. It provides an IP2X protection level, ensuring it remains operational in industrial environments with potential exposure to dust and moisture.

The AJ65SBTB3-16D module is ideal for automation systems requiring precise input/output control, making it a valuable addition to any Mitsubishi PLC setup for effective communication and operational management.

Product Description

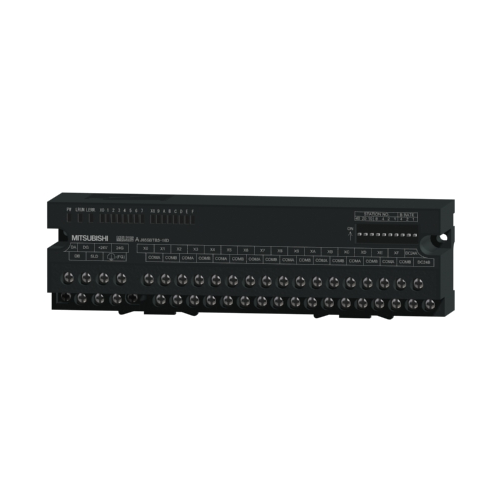

Mitsubishi PLC CC-Link Transistor Leakage Output Module AJ65SBTB3-16D

The Mitsubishi CC-Link Transistor Leakage Output Module AJ65SBTB3-16D is an essential component in industrial automation systems, known for its efficiency and reliable performance. The AJ65SBTB3-16D module offers robust features and specifications that make it suitable for a wide range of applications in control and monitoring systems.

Input Specifications:

Input Type: DC 24V input
Input Form: Common positive/negative terminal (leakage type, source type shared)
Input Points: 16 points
Insulation Type: Optocoupler insulation
Rated Input Voltage: DC24V
Rated Input Current: Approximately 7mA
Operating Voltage Range: DC19.2V to DC26.4V (within a 5% fluctuation tolerance)
Maximum Simultaneous Input Points: 100%
ON Voltage / ON Current: ≥ 14V / ≥ 3.5mA
OFF Voltage / OFF Current: ≤ 6V / ≤ 1.7mA
Input Resistance: Approximately 3.3kΩ
Response Time: ≤ 1.5ms (at DC24V)
Common Terminal Type: 16 points with 1 common terminal (3-wire terminal block type)

I/O Module Power Supply:

Voltage: DC20.4V to DC26.4V (within a 5% fluctuation tolerance)
Current: ≤ 45mA (when all points are ON at DC24V)

Noise and Voltage Specifications:

Noise Strength: Simulated noise voltage of 1500VP-P, noise width 1μs, frequency range 25–60Hz
Dielectric Strength: AC500V for 1 minute between external terminal group and ground
Insulation Resistance: DC500V insulation resistance tester, measured resistance ≥ 10MΩ between external terminal group and ground

Additional Features:

Protection Level: IP2X
External Connection Method:
- Communication & I/O Module Power Section: 7-point 2-stage terminal block (for transmission circuit, I/O module power, FG)
- Input/Output Power & Signals: 18-point direct mounting terminal block (for input/output power and I/O signals)
- Screw Tightening Torque: M3*5.2 screws with a tightening torque of 59–88N·cm (for terminal block installation)

Module Mounting and Installation:

Mounting Screw: M4 screw with flat washer, tightening torque range 79–108N·cm
DIN Rail Mounting: Compatible with TH35-7.5Fe and TH35-7.5A1 (based on JIS C 2812 standard)
Press-Fit Terminal Compatibility:
- RAV1.25-3 (for wire sizes from 0.3mm² to 1.25mm²)
- V2-MS3, RAP2-3SL, TGV2-3N (for wire sizes from 1.25mm² to 2.0mm²)

Weight: 0.25kg

The AJ65SBTB3-16D module is designed for users looking for precision and dependability in their industrial processes. As an integral part of the Mitsubishi system, the AJ65SBTB3-16D module allows for seamless communication and control in a broad array of applications. With its flexibility, the AJ65SBTB3-16D module helps ensure stable, efficient performance, making it an invaluable tool for automation and monitoring tasks. The AJ65SBTB3-16D provides the necessary input-output control for managing the demands of modern industrial systems.
