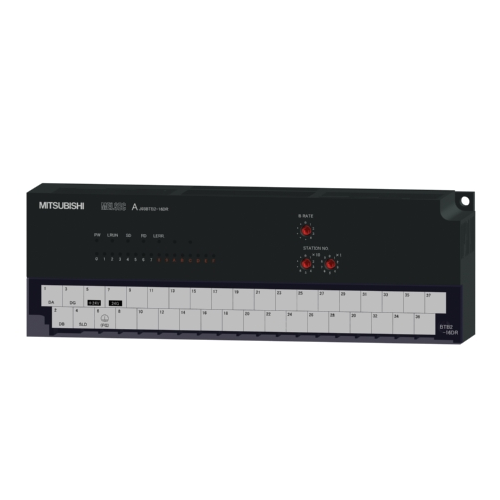

Mitsubishi PLC CC-Link Input/Output Module AJ65BTB2-16DR

The Mitsubishi PLC CC-Link Input/Output Module AJ65BTB2-16DR is a reliable and high-performance module designed to integrate into Mitsubishi PLC systems. It offers 8 DC input points and 8 relay output points, supporting both sink and source input configurations. This module operates with a rated DC24V input voltage and provides optical isolation for enhanced protection. The AJ65BTB2-16DR ensures fast data transfer speeds of up to 10Mbps, facilitating seamless communication in industrial applications.

The AJ65BTB2-16DR also features a response time of just 10ms, ensuring quick and accurate input/output processing. The output section can handle DC24V and AC240V switching with a maximum current rating of 2A per point. This makes the AJ65BTB2-16DR highly suitable for controlling various types of machinery and devices. With its compact design, it can be easily installed in standard DIN rail enclosures, adding to its versatility in automation setups.

In terms of protection, the AJ65BTB2-16DR is equipped with photocoupler isolation for input protection and is designed to meet high industrial standards. Its robust performance and high-speed data transmission capabilities make the AJ65BTB2-16DR an essential component in CC-Link network systems, ensuring efficient and reliable control across various industrial processes.

Product Description

Mitsubishi PLC CC-Link Input/Output Module AJ65BTB2-16DR

The Mitsubishi PLC CC-Link Input/Output Module AJ65BTB2-16DR is designed for high-speed, efficient industrial automation, offering both input and output capabilities with the advanced CC-Link protocol. The AJ65BTB2-16DR ensures quick and reliable data transmission at speeds up to 10 Mbps, allowing for effective remote I/O control and field information management.

Input Specifications

Input Type: DC Sink/Source
DC Input Points: 8 points
Rated Input Voltage: DC24V
Rated Input Current: 7mA
Operating Voltage Range: DC19.2V to DC28.8V
Maximum Simultaneous Inputs: 100%
ON Voltage/Current: 14V or above / 3.5mA or above
OFF Voltage/Current: 6V or below / 1.7mA or below
Input Resistance: 3.3kΩ
Response Time: 10ms
Input Wiring Method: 8-point screw terminal
Input Isolation Type: Photocoupler isolation

Output Specifications

Output Type: Relay (8 points)
Rated Switching Voltage/Current:
- DC24V, 2A per point
- AC240V, 2A per point, 8A shared across all points
Minimum Switching Load: DC5V, 1mA
Maximum Switching Voltage: AC250V, DC110V
Output Response Time:
- OFF → ON: 10ms or less
- ON → OFF: 12ms or less

Other Specifications

Occupied Station Number: 1 station
Dimensions (H x W x D): 65mm x 197.4mm x 46mm
Weight: 0.43kg

High-Speed Communication

The AJ65BTB2-16DR module supports up to 10Mbps data transmission, making it ideal for environments where high-speed control and data exchange are crucial. By implementing CC-Link, the AJ65BTB2-16DR improves on older field networks, providing faster communication while maintaining the integrity of machine control. This enhancement allows for seamless handling of large volumes of data without disrupting the operational flow. The AJ65BTB2-16DR delivers top-tier performance, making it a preferred choice for various industrial applications.

In summary, the AJ65BTB2-16DR is a robust and versatile module designed for high-performance industrial automation systems, offering reliable input/output functions, fast response times, and excellent data handling capabilities for diverse applications.
