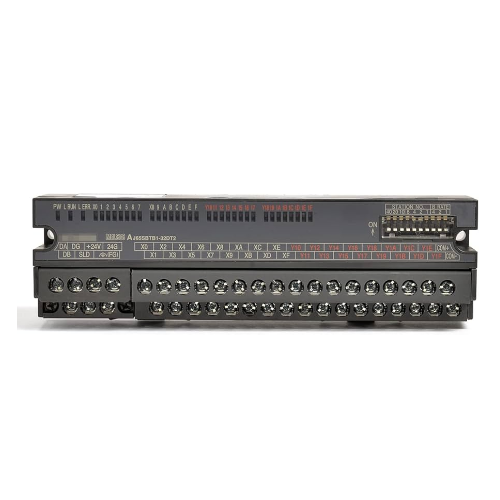

Mitsubishi PLC CC-Link Input/Output Module AJ65SBTB1-32DT2 Product Description:
The Mitsubishi PLC Input/Output Module AJ65SBTB1-32DT2 is an advanced industrial module designed for integration into automation systems. This high-performance module offers reliable input and output capabilities with fast response times, robust insulation, and efficient power usage, making it ideal for demanding environments. The AJ65SBTB1-32DT2 module is optimized for applications requiring precise control over electrical inputs and outputs, with a wide operating voltage range and excellent protection features.
Input Specifications:
- Input Points: 16
- Insulation Method: Optocoupler insulation
- Rated Input Voltage: DC24V
- Rated Input Current: Approximately 7mA
- Operating Voltage Range: DC19.2V ~ DC26.4V (within a 5% fluctuation)
- Maximum Simultaneous Input Points: 100%
- ON Voltage / ON Current: ≥ 14V / ≥ 3.5mA
- OFF Voltage / OFF Current: ≤ 6V / ≤ 1.7mA
- Input Resistance: Approximately 3.3kΩ
- Response Time: ≤ 1.5ms (when DC24V)
- Input Type: Sinking (positive common)
The AJ65SBTB1-32DT2 offers a high level of accuracy and response time for precise control and data acquisition in industrial processes.
Output Specifications:
- Output Points: 16
- Insulation Method: Optocoupler insulation
- Rated Load Voltage: DC24V
- Operating Load Voltage Range: DC19.2V ~ DC26.4V (within a 5% fluctuation)
- Maximum Load Current: 0.5A per point, 1.2A per common terminal
- Maximum Inrush Current: 1.0A (within 10ms)
- OFF Leakage Current: ≤ 0.1mA
- Maximum Voltage Drop at ON: ≤ 0.3V (typical) or 0.6V at 0.5A
- Output Type: Sourcing (leak type)
- Response Time:
- OFF to ON: ≤ 0.5ms
- ON to OFF: ≤ 1.5ms (for resistive load)
- External Power Supply for Output Section:
- Voltage: DC19.2V ~ DC26.4V (within 5% fluctuation)
- Current: ≤ 30mA (DC24V, 1 common terminal) excluding external load current
- Overcurrent Suppression: Zener Diode
The AJ65SBTB1-32DT2 is equipped with a reliable overcurrent suppression system, making it a great choice for applications with high electrical demands.
Additional Specifications:
- Common Terminal Method: 32 points with 1 common terminal (3-wire terminal block)
- I/O Module Power Supply:
- Voltage: DC20.4V ~ DC26.4V (within 5% fluctuation)
- Current: ≤ 60mA (DC24V, all points ON, excluding external load current)
- Noise Immunity: Can withstand DC-type noise voltage of 500V peak-to-peak, with a noise width of 1μs and noise frequency of 25~60Hz
- Dielectric Strength: AC500V for 1 minute between external terminals and ground
- Insulation Resistance: DC500V, ≥10MΩ between external terminals and ground
- Protection Class: IP2X
- Weight: 0.25kg
With the AJ65SBTB1-32DT2, the robust design and high insulation resistance ensure reliable performance even in harsh environments.
External Connection:
- Power and Communication Terminals: 7-point, 2-segment terminal block for power and communication lines (Transmission loop, I/O module power, and FG)
- Input/Output Terminals: 34-point directly mounted terminal block for input/output power and I/O signals
- Installation: M4 bolts with flat washers, tightened to a torque range of 79~108N·cm, can be mounted on a DIN rail, and can be installed in 6 different orientations.
- DIN Rail Compatibility: TH35-7.5Fe, TH35-7.5A1 (based on JIS C 2812 standards)
- Compatible Crimp Terminals:
- RAV1.25-3 (JIS C 2805 standard) suitable for wire sizes 0.3~1.25mm²
- V2-MS3 (Japanese Crimp Terminal Co.) and others for wire sizes 1.25~2.0mm²
The AJ65SBTB1-32DT2 is compatible with a wide variety of terminals and offers flexible installation options, making it a versatile choice for complex automation systems.
This AJ65SBTB1-32DT2 module is designed to provide fast, reliable input/output control, with built-in protections and features that make it a great choice for industrial applications where durability and precision are paramount.
