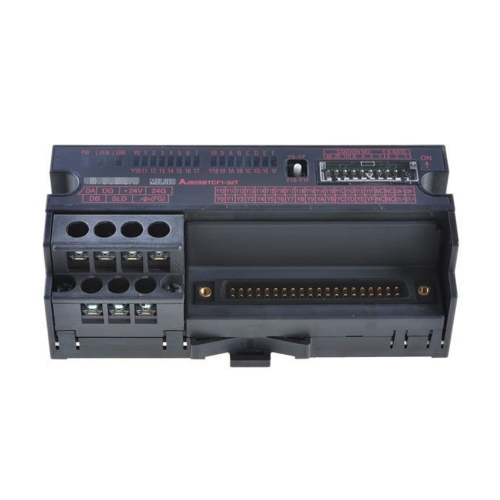

Mitsubishi PLC CC-Link Output Module AJ65SBTCF1-32T

The Mitsubishi PLC CC-Link Output Module AJ65SBTCF1-32T is an industrial automation module designed to provide reliable and efficient output control in CC-Link-based systems. It features 32 output points, supporting both DC12V/24V with a wide voltage range from DC10.2V to DC26.4V. This module excels with a fast response time and offers protection against overloading, overvoltage, and overheating. It uses a Transistor Sink (Leakage type) output, ensuring minimal leakage current (0.1mA or less) when off.

The AJ65SBTCF1-32T integrates a 40-pin FCN connector, simplifying installation and providing secure electrical connections. It consumes 60mA or less of current when all outputs are active, with an excellent insulation resistance of 10MΩ or more. The module's compact design (50mm x 118mm x 40mm) and 0.15kg weight make it suitable for space-constrained environments.

With features such as overload protection, overvoltage protection, and overheat protection, the AJ65SBTCF1-32T is well-suited for applications in factory automation, robotics, material handling, and process control. Its fast response time and durability make it a key component for improving the efficiency and reliability of industrial control systems.

Product Description

Mitsubishi PLC CC-Link Output Module AJ65SBTCF1-32T

The Mitsubishi CC-Link Output Module AJ65SBTCF1-32T is a powerful and reliable solution for industrial automation, designed to efficiently handle output control in CC-Link-based systems. With advanced features, it ensures optimal performance and seamless integration into your factory automation processes.

Key Features of AJ65SBTCF1-32T:

Output Points: The AJ65SBTCF1-32T provides 32 output points, offering ample control for industrial applications.
Output Type: This module uses a Transistor Sink (Leakage type) output, ideal for switching applications.
Voltage Range: Supports DC12/24V with an operating range of DC10.2V to DC26.4V, ensuring adaptability to various system configurations.
Maximum Load Current: Each output point can handle a maximum of 0.1A, with a 3.2A maximum current per common terminal in total.
Inrush Current: Capable of withstanding an inrush current of 1.0A for up to 10ms, offering flexibility for surge handling.
Leakage Current: When the output is off, leakage current is 0.1mA or less, preventing unwanted current flow.

Protection and Performance:

The AJ65SBTCF1-32T includes overload protection, overvoltage protection, and overheat protection, making it a durable solution for high-demand environments.
Response Time: The module features ultra-fast switching:
- OFF to ON: 0.5ms or less
- ON to OFF: 0.5ms or less (with resistive load)
Voltage Drop: With 0.085V typical and 0.2V maximum, the AJ65SBTCF1-32T ensures minimal power loss.

Installation and Connectivity:

Connector Type: The AJ65SBTCF1-32T is equipped with a 40-pin FCN connector, ensuring stable and secure electrical connections.
Common Terminal: The module uses a single common terminal for 32 points, simplifying wiring for large-scale systems.
I/O Power Supply: Requires DC20.4V to DC26.4V with a current consumption of 60mA or less when all outputs are active.

Durability and Resistance:

The AJ65SBTCF1-32T module is designed to handle harsh industrial environments, featuring an IP2X protection rating for resistance to dust and particles.
Insulation Resistance: 10MΩ or more (measured at DC500V), ensuring secure electrical isolation.

Compact and Lightweight Design:

Dimensions: The module has compact dimensions of 50mm (H) x 118mm (W) x 40mm (D), making it suitable for space-constrained applications.
Weight: 0.15kg, lightweight for easy handling and installation.

Application Areas for AJ65SBTCF1-32T:

The Mitsubishi CC-Link Output Module AJ65SBTCF1-32T is perfect for industries such as:

Factory Automation
Robotics
Material Handling Systems
Process Control

With its robust protection features and fast response times, the AJ65SBTCF1-32T is an ideal choice for reliable and efficient control systems, boosting the operational efficiency of various industrial applications.
