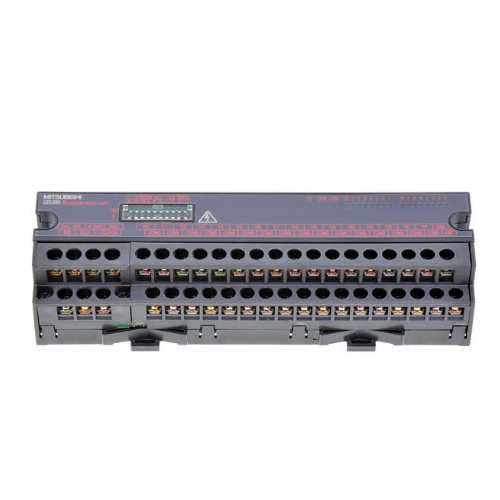

Mitsubishi PLC CC-Link Terminal Block Type Output Module AJ65SBTB2N-16R
The Mitsubishi PLC CC-Link Terminal Block Type Output Module AJ65SBTB2N-16R is a versatile and reliable component designed to offer efficient relay-based output control for industrial automation applications. This module provides 16 relay output points, suitable for both DC and AC voltage ranges, ensuring broad compatibility with various industrial systems.
Key Features and Specifications:
- Output Points: 16 points
- Output Type: Relay type output
- Rated Load Voltage/Current:
- DC24V (for resistive loads)
- AC240V (COS Ф =1) at 2A per point and 4A per common terminal
- Minimum Switching Load: DC5V, 1mA
- Maximum Switching Voltage:
- Response Time:
- OFF → ON: 10ms or less
- ON → OFF: 12ms or less (resistive load)
- Electrical Lifespan:
- Rated switching load: Over 100,000 operations
- AC200V 1.5A, AC240V 1A (COS Ф =0.7): Over 100,000 operations
- DC24V 1A, DC100V 0.1A (L/R = 7ms): Over 100,000 operations
- Mechanical Lifespan: Over 20 million cycles
- Maximum Switching Frequency: 3600 cycles per hour
- Overcurrent Suppression: None
- Common Terminal Configuration: 16 points, 1 common terminal (2-wire terminal block type)
- I/O Module Power Supply:
- Voltage: DC20.4V to DC26.4V (with 5% fluctuation)
- Current: 85mA or less (at DC24V, all points ON)
- Noise Immunity: Simulated noise of 1500VP-P with noise width of 1μs and frequency of 25~60Hz
- Dielectric Strength: AC500V for 1 minute (between external terminals and ground)
- Insulation Resistance: 10MΩ or more (measured with DC500V insulation resistance meter)
- Dimensions: 65mm (H) × 197.4mm (W) × 46mm (D)
- Weight: 0.35kg
The AJ65SBTB2N-16R module is designed for reliable operation in demanding industrial environments. Its ability to handle high switching loads, combined with a high degree of durability, makes it a crucial component in Mitsubishi's PLC systems. The terminal block design simplifies wiring and installation, making it an ideal choice for users who need a robust and flexible I/O module for their automation systems. The AJ65SBTB2N-16R allows for seamless integration and reliable operation, making it a dependable choice for complex automation processes. With the AJ65SBTB2N-16R, you can ensure smooth and efficient control of your industrial systems.
