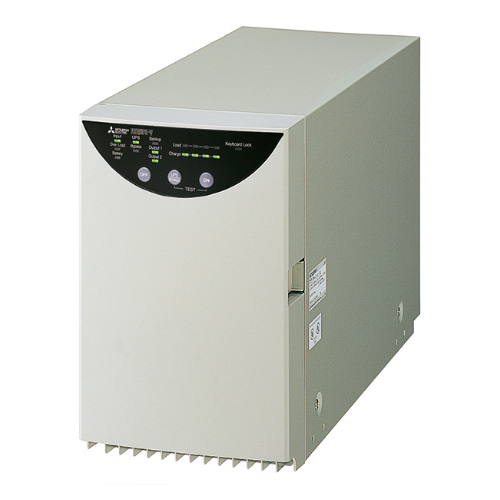

Mitsubishi UPS FW-V10-0.7K
The Mitsubishi UPS FW-V10-0.7K is a compact, tower-style line-interactive UPS designed for small branch offices, network closets, and industrial control panels. Delivering 0.7 kVA / 490 W of pure sine-wave power, the FW-V10-0.7K bridges brownouts, surges, and momentary outages with zero-transfer “no-break” switching, ensuring critical equipment stays online.
Key Features
-
Line-Interactive Inverter Topology
Instantaneous switchover to battery backup without interruption.
-
Wide Input Range & High Power Factor
Operates on 85–144 VAC at 47.5–63 Hz with PF ≥ 0.95.
-
Reliable VRLA Battery
Sealed, valve-regulated lead-acid battery with a 5-year expected life (@ 20 °C); provides 10 minutes of full-load runtime at 25 °C and recharges to 90 % in 8 hours.
-
Multiple Pure Sine-Wave Outlets
Six NEMA 5-15R (2P15A earthed) receptacles split across three independent circuits; 100–120 VAC ± 2 % output, ≤ 3 % THD, and 300 % peak-current tolerance for inrush loads.
-
Comprehensive Communications & Signaling
RS-232C (D-sub 9-pin), USB Type-B, open-collector alarm outputs (UPS fault, on-battery, low battery), and opto-isolated shutdown input.
-
Compact, Quiet & Robust
170 × 270 × 443 mm (W × H × D), ~19 kg; 45 dB at 1 m (A-weighted); forced-air cooling with a fan life of 5 years (@ 20 °C).
-
Safety & Compliance
UL 1778 certified; complies with VCCI Class A and FCC Class A EMC standards.
Technical Specifications
Category
|
Specification
|
| Model |
FW-V10-0.7K |
| Topology |
Line-interactive inverter |
| Form Factor |
Tower-style |
| Input |
Single-phase 2-wire earthed, 85–144 VAC, 47.5–63 Hz, PF ≥ 0.95 (NEMA 5-15P) |
| Capacity |
0.7 kVA / 490 W |
| Battery |
VRLA (sealed lead-acid), 5 years @ 20 °C |
| Backup Time |
10 minutes @ full load (25 °C) |
| Recharge Time |
8 hours to 90 % |
| Output Voltage |
100–120 VAC ± 2 % (pure sine-wave) |
| Frequency Modes |
Sync Mode: mains-synchronized
Fixed Mode: 50/60 Hz ± 0.5 % (user-selectable) |
| Outlets |
6 × NEMA 5-15R (2P15A) on three circuits |
| THD |
≤ 3 % (linear load) |
| Peak-Current Tolerance |
300 % of rated current |
| Overload Protection |
110 % for 30 s / 140 % for 3 s |
| Environment |
0–40 °C (recommended 20–30 °C); ≤ 95 % RH non-condensing; 80 W heat dissipation |
| Cooling |
Forced-air (fan life 5 years @ 20 °C) |
| Dimensions (W×H×D) |
170 × 270 × 443 mm |
| Weight |
~ 19 kg |
| Noise |
45 dB @ 1 m (A-weighted) |
| Certifications |
UL 1778; VCCI Class A; FCC Class A |
Replacement Models
Since the FW-V10-0.7K has been discontinued, Mitsubishi recommends the following FREQUPS FW-S series 100 V models as direct replacements:
Backup Duration
|
Discontinued Model
|
Replacement Models
|
| 10 minutes |
FW-V10-0.7K (0.7 kVA) |
• FW-S10-0.7K
• FW-S10C-0.7K
• FW-S10L-0.7K |
For sizing guidance, quotations, or technical support on the FW-V10-0.7K or its replacements, please contact Melink Automation.
