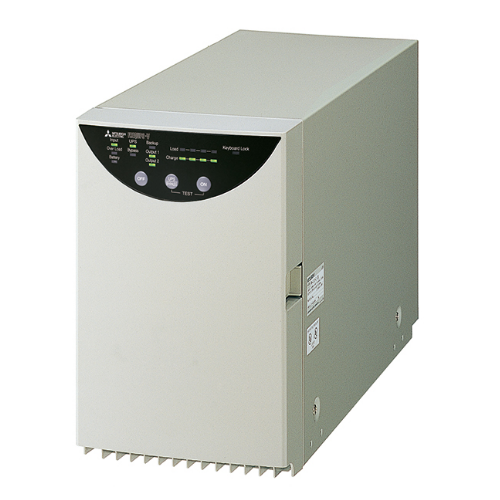

Mitsubishi UPS FW-V10-1.5K
The Mitsubishi UPS FW-V10-1.5K is a compact, tower-style, line-interactive uninterruptible power supply engineered to protect small branch offices, network closets, and industrial control panels. With a capacity of 1.5 kVA / 1.0 kW, it delivers pure sine-wave power and instant zero-transfer “no-break” switching, maintaining continuous operation of critical equipment during brownouts, surges, and brief outages.
Key Features
-
Line-Interactive Inverter Topology
The FW-V10-1.5K ensures seamless switchover to battery without any interruption, providing reliable protection for sensitive electronics.
-
Wide Input Range & High Power Factor
Accepts 85–144 VAC (±0 %) at 47.5–63 Hz with a high power factor (≥ 0.95), making it adaptable to unstable utility conditions.
-
Dependable VRLA Battery
Equipped with a sealed, valve-regulated lead-acid (VRLA) battery offering a 5-year expected life (at 20 °C). Provides 10 minutes of full-load backup (25 °C) and recharges to 90 % in 8 hours.
-
Versatile Output Configuration
• Six NEMA 5-15R outlets (2P15A earthed) split across three independent circuits.
• 100–120 VAC ± 2 % pure sine-wave output with ≤ 3 % THD (total harmonic distortion).
• Supports 300 % peak-current tolerance for inrush protection.
-
Advanced Communications
RS-232C (D-sub 9-pin) and USB Type-B ports for remote monitoring and graceful shutdown.
Open-collector alarm outputs (UPS fault, on-battery, low battery) and opto-isolated shutdown input for seamless integration with monitoring systems.
-
Compact & Quiet Operation
• Dimensions: 170 × 270 × 538 mm (W × H × D)
• Weight: ~27 kg
• Noise: 45 dB at 1 m (A-weighted)
• Forced-air cooling (fan life 5 years at 20 °C) ensures optimal performance.
-
Reliable & Certified
Certified to UL 1778; compliant with VCCI Class A and FCC Class A EMC standards; special-order CE marking available.
Technical Specifications
Category
|
Specification
|
| Model |
Mitsubishi UPS FW-V10-1.5K |
| Topology |
Line-interactive inverter |
| Installation |
Tower-style |
| AC Input |
|
| • Phases / Lines |
Single-phase, 2-wire (earthed) |
| • Connector |
NEMA 5-15P (2P15A earthed) |
| • Voltage |
85–144 VAC |
| • Frequency |
47.5–63 Hz |
| • Power Factor |
≥ 0.95 |
| Battery |
|
| • Type |
Sealed VRLA (Valve-Regulated Lead-Acid) |
| • Expected Life |
5 years @ 20 °C |
| • Backup Time |
10 minutes @ full load (25 °C) |
| • Recharge Time |
8 hours to 90 % |
| AC Output |
|
| • Voltage |
100–120 VAC ± 2 % |
| • Frequency Modes |
Sync Mode: mains-synchronized
Fixed Mode: 50/60 Hz ± 0.5 % (user-selectable) |
| • Capacity |
1.5 kVA / 1.0 kW |
| • Outlets |
6× NEMA 5-15R (2P15A) in three circuits |
| • Waveform |
Pure sine-wave |
| • Overload Protection |
300 % peak current; 110 % for 30 s / 140 % for 3 s |
| • THD |
≤ 3 % (linear load) |
| Environment |
|
| • Operating Temperature |
0–40 °C (recommended 20–30 °C) |
| • Relative Humidity |
≤ 95 % RH (non-condensing) |
| • Cooling |
Forced-air (fan life 5 years @ 20 °C) |
| • Heat Dissipation |
175 W |
| Interfaces |
|
| • RS-232C |
D-sub 9-pin (female) |
| • USB |
Type-B |
| • External Signals |
Open-collector outputs (UPS fault, on-battery, low battery); opto-isolated shutdown input |
| Acoustics & Design |
|
| • Noise Level |
45 dB @ 1 m (A-weighted) |
| • Color |
White (Mitsubishi OA color) |
| Mechanical |
|
| • Dimensions (W×H×D) |
170 × 270 × 538 mm |
| • Weight |
~27 kg |
| Certifications |
UL 1778; VCCI Class A; FCC Class A |
Replacement Models
As the FW-V10-1.5K has been discontinued, Mitsubishi recommends the following FREQUPS FW-S series models as direct replacements:
Discontinued Model
|
Replacement Models
|
| FW-V10-1.5K (1.5 kVA) |
• FW-S10-1.5K
• FW-S10C-1.5K
• FW-S10R-1.5K
|
For detailed sizing, quotations, or technical support on the Mitsubishi UPS FW-V10-1.5K, please contact Melink Automation.
