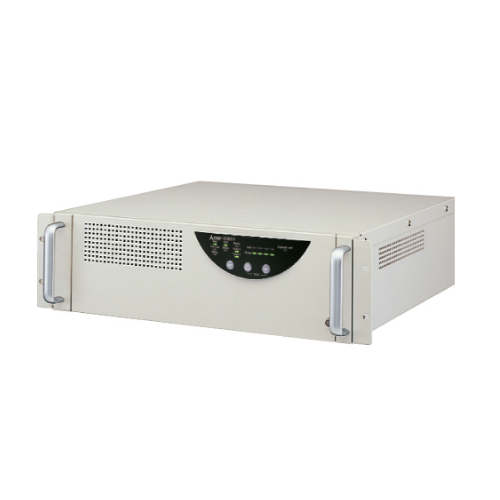

Mitsubishi UPS FW-V10R-1.5K
Rack-Type Online UPS | 1.5kVA / 1.0kW | 100V Systems
The Mitsubishi FW-V10R-1.5K is a rack-mounted uninterruptible power supply (UPS) designed for 100V applications that require compact installation, high reliability, and seamless backup power. As part of the FREQUPS FW-V Series, it employs a true online double-conversion system, delivering pure sine wave output with zero transfer time to protect sensitive equipment.
Key Features of FW-V10R-1.5K
-
True online double-conversion technology
-
Rack-mountable 3U size (430×132×447mm)
-
Wide input voltage range (85–144V AC)
-
10-minute runtime at full load
-
Pure sine wave output with 0ms switching time
-
Overload protection up to 140%
Specifications of FW-V10R-1.5K
π¦ Category
π¦ Series / Model
-
FREQUPS FW-V Series
-
Model: FW-V10R-1.5K
π¦ Operation Mode
π¦ Installation Type
π¦ Product Type
AC Input
-
Phase / Wiring: Single-phase, 2-wire with ground
-
Plug Type: 2P 15A with ground, NEMA 5-15P (*Note 1)
-
Voltage Range: AC 85V–144V
-
Frequency: 47.5Hz–63Hz
-
Input Capacity: 1.5kVA
-
Power Factor: ≥ 0.95
Battery
-
Type: VRLA (Valve-Regulated Lead-Acid)
-
Design Life: 5 years (at 20°C ambient)
-
Backup Time: Approx. 10 minutes at rated load (initial performance at 25°C)
-
Recharge Time: Approx. 8 hours to 90% capacity (*Note 2)
AC Output
-
Phase / Wiring: Single-phase, 2-wire with ground
-
Voltage: 100–120V ±2% (*Note 3)
-
Frequency Modes:
-
Synchronous Mode: Synchronized with input
-
Fixed Mode: 50Hz / 60Hz ±0.5% (user-selectable)
-
Factory default: Synchronous Mode
-
Output Capacity: 1.5kVA / 1.0kW
-
Outlet Output: 6 × NEMA 5-15R (3 circuits, 2 outlets each)
-
Terminal Block Output: Not available
-
Waveform: Pure sine wave
-
Backup Switching Time: 0 ms (true online)
-
Peak Current Capacity: 300% of rated current (crest factor = 3.0)
-
Voltage Distortion (THD): ≤ 3% (resistive load)
-
Overload Protection: 110% for 30 seconds / 140% for 3 seconds (*Note 4)
Environment
-
Operating Temperature: 0–40°C (recommended 20–30°C)
-
Relative Humidity: ≤ 95% RH (non-condensing)
-
Startup Method: Battery-start capable
-
Cooling Method: Forced air (fan life ~5 years at 20°C)
-
Heat Dissipation: 175W
Interface & Communication
-
RS-232C: D-sub 9-pin (female)
-
USB (Type B): Not supported
-
External Signals:
-
Open Collector Output: UPS alarm, battery operation, low battery
-
Photocoupler Input: UPS shutdown
-
Optional Interface Slot: Available
Other Information
-
Noise Level: 45 dB (1 meter, front, A-weighted)
-
Color: Mitsubishi OA White
-
Dimensions (W×H×D): 430 × 132 × 447 mm
-
Weight: Approx. 29 kg
Compliance & Standards
π End-of-Life (EOL) Notice & Replacement
Mitsubishi UPS FW-V10R-1.5K
We would like to inform you that the Mitsubishi UPS FW-V10R-1.5K, part of the FREQUPS FW-V Series (100V systems), has been officially discontinued. This decision is due to the completion and availability of the successor series – FREQUPS FW-S Series, which offers enhanced performance and efficiency.
π Key Dates
Milestone
|
Date
|
| Final Order Date |
May 31, 2019 |
| End of Shipment |
August 30, 2019 |
| End of Service Support |
May 29, 2026 |
β
Recommended Replacement
Discontinued Model
|
Replacement Model
|
| FW-V10R-1.5K (rack type) |
FW-S10R-1.5K (rack type) |
The Mitsubishi FW-S10R-1.5K is part of the upgraded FW-S Series and maintains full compatibility with 100V systems. It offers improved energy efficiency, longer battery lifespan, modern monitoring features, and better overall performance.
π§Ύ Summary
The Mitsubishi FW-V10R-1.5K was a trusted rack-mounted UPS solution, widely used for protecting control panels, server racks, and communication systems in compact installations. As it has reached its EOL phase, we strongly recommend planning your migration to the successor model, FW-S10R-1.5K, to ensure continued protection and compliance.
π For migration support, detailed specifications, or pricing of the replacement model, please contact Melink Automation.
