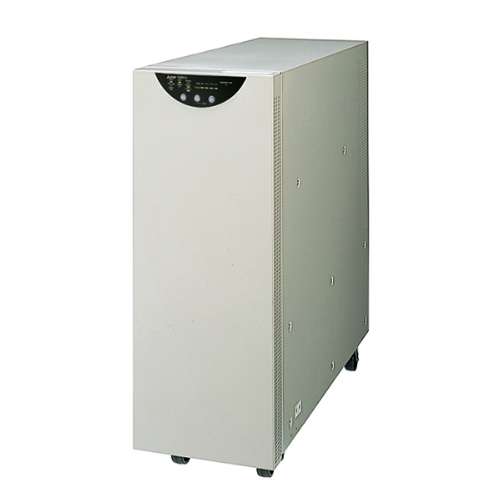

Mitsubishi UPS FW-V10-5.0K

The Mitsubishi FW-V10-5.0K is a high-performance uninterruptible power supply (UPS) designed for critical systems operating on 100V power. As part of Mitsubishi Electric’s FREQUPS FW-V Series, this tower-type UPS provides true online double-conversion protection, ensuring a seamless and clean power supply even under unstable grid conditions or during power outages.

With a rated output of 5.0kVA / 3.5kW, the FW-V10-5.0K is well-suited for applications such as small server rooms, industrial control equipment, and communication systems. It features both terminal block and NEMA outlet outputs, along with intelligent monitoring via RS-232C and external I/O.

Product Description

Mitsubishi UPS FW-V10-5.0K

The Mitsubishi UPS FW-V10-5.0K is a reliable, tower-type uninterruptible power supply (UPS) designed with a true online double-conversion topology to provide continuous, clean, and stable power to mission-critical systems. Rated at 5.0kVA / 3.5kW, it is ideal for use with industrial control equipment, server racks, and sensitive electronic devices operating in 100V environments.


Key Features of FW-V10-5.0K

🌐 True Online Double Conversion ensures uninterrupted power delivery with zero transfer time
🔌 Wide Input Voltage Range (85–144V) accommodates unstable utility power
🔋 Pure Sine Wave Output suitable for precision electronics
⚡ No Transfer Time Backup Switching
🧠 Multiple Output Options & Intelligent Monitoring Interfaces
🧱 Compact Tower Design, ideal for office or industrial installation

Technical Specifications of FW-V10-5.0K

🔸 Input

Phase/Wire: Single-phase 2-wire (M6 terminal block)
Voltage Range: AC 85V to 144V
Frequency: 47.5Hz to 63Hz
Capacity: 5.0kVA
Power Factor: ≥ 0.95

🔸 Battery

Type: VRLA (Valve-Regulated Lead-Acid)
Design Life: 5 years (at 20°C ambient)
Backup Time: Approx. 10 minutes at rated load (initial condition, 25°C)
Recharge Time: Approx. 8 hours (to 90%)

🔸 Output

Phase/Wire: Single-phase 2-wire with ground
Voltage: 100–120V ±2%
Frequency Control:
- Sync Mode: Synchronized to input
- Fixed Mode: 50Hz / 60Hz ±0.5% (user-selectable)
Capacity: 5.0kVA / 3.5kW
Outlet Output: 6 x NEMA 5-15R (3 circuits, 2 outlets each)
Terminal Block Output: 3 circuits (M6)
Waveform: Pure sine wave
Transfer Time: 0 ms (no break)
Crest Factor: 3.0 (300% peak current tolerance)
THD: ≤ 3% (resistive load)
Overload Protection: 110% for 30s / 140% for 3s

🔸 Environmental

Operating Temp: 0–40°C (recommended: 20–30°C)
Humidity: ≤ 95% RH (non-condensing)
Startup: Battery-start supported
Cooling: Forced air cooling (fan life approx. 5 years at 20°C)
Heat Dissipation: 505W
Noise Level: Approx. 45 dB (at 1m, A-weighted)
Color: Mitsubishi OA White

🔸 Interfaces

RS-232C: D-sub 9-pin (male)
External Signals:
- Open collector output: UPS alarm, battery mode, low battery
- Photocoupler input: UPS shutdown signal
USB: Not equipped
Optional Slot: Yes

🔸 Physical

Dimensions (W × H × D): 250 × 700 × 710 mm
Weight: Approx. 109 kg

Standards & Compliance

Safety: UL1778 certified
EMC: VCCI Class A, FCC Class A
CE Mark: Not applicable
RoHS: Not specified

End-of-Life Notice & Replacement

The Mitsubishi UPS FW-V10-5.0K, part of the 100V FREQUPS FW-V Series, has been officially discontinued:

Event	Date
End of Order Acceptance	May 31, 2019
Final Shipment Date	August 30, 2019
Service Support Until	May 29, 2026

Recommended Replacement Model: Mitsubishi FREQUPS FW-S10-5.0K
The new FW-S Series offers significant improvements in performance, efficiency, and interface flexibility, and is fully compatible with 100V systems.

Summary & Contact Information

The Mitsubishi UPS FW-V10-5.0K was a trusted solution for stable power delivery in a wide range of applications. While this model has been discontinued, we recommend upgrading to the next-generation FW-S10-5.0K for enhanced reliability and future-ready performance.

📞 For detailed specifications, quotations, or assistance in upgrading, please contact Melink Automations.
