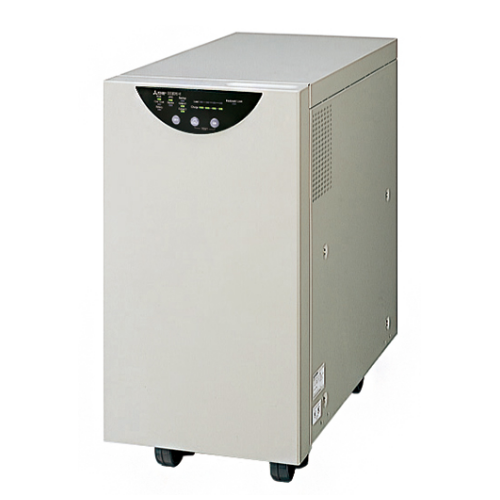

Mitsubishi UPS FW-V10-3.0K
The Mitsubishi UPS FW-V10-3.0K is a tower-style, line-interactive uninterruptible power supply engineered for 100 V environments—ideal for small server racks, network closets, and control panels. Rated at 3.0 kVA / 2.1 kW, it delivers pure sine-wave output and “no-break” switching to its internal VRLA battery whenever utility power sags, surges, or fails.
Key Features of FW-V10-3.0K
-
Line-Interactive Inverter Topology
Continuously regulates incoming voltage and frequency, engaging the battery in under 1 ms only when needed to preserve battery life.
-
Wide Input Window & High Power Factor
Operates on 85–144 VAC (47.5–63 Hz) with PF ≥ 0.95, accommodating unstable grid conditions.
-
Robust VRLA Battery
Sealed, valve-regulated lead-acid battery rated for 5 years (20 °C); provides 10 minutes of full-load backup (25 °C) and recharges to 90 % in 8 hours.
-
Flexible Outlet Configuration
• Six NEMA 5-15R receptacles (2 P15A earthed) across three independent circuits
• Three M4 terminal-block outputs for hard-wired loads
• 100–120 VAC ± 2 % pure sine-wave output, ≤ 3 % THD, 300 % peak-current tolerance
-
Seamless Monitoring & Control
RS-232C (D-sub 9-pin) and USB Type-B ports, open-collector alarm outputs (UPS fault, on-battery, low battery), and an opto-isolated shutdown input.
-
Quiet, Compact Design
Footprint: 250 × 500 × 530 mm (W×H×D); Weight: ~62 kg; Noise: 45 dB(A) at 1 m; forced-air cooling with 5-year fan life.
-
Global Compliance
Certified to UL 1778 and compliant with VCCI Class A and FCC Class A EMC standards.
Technical Specifications
Category
|
Specification
|
| Model |
FW-V10-3.0K |
| Topology |
Line-interactive inverter |
| Installation |
Tower-style |
| Input |
Single-phase 2-wire (earthed); 85–144 VAC; 47.5–63 Hz; PF ≥ 0.95; M4 terminal |
| Capacity |
3.0 kVA / 2.1 kW |
| Battery |
Sealed VRLA; 5 years @ 20 °C; 10 min backup @ full load (25 °C); 8 h to 90 % recharge |
| Output |
Single-phase 2-wire (earthed); 100–120 VAC ± 2 %; pure sine-wave; ≤ 3 % THD |
| Outlets |
6× NEMA 5-15R (2 P15A) in three circuits; 3× M4 terminal blocks |
| Overload Protect |
300 % peak current; 110 % for 30 s / 140 % for 3 s |
| Environment |
0–40 °C; ≤ 95 % RH non-condensing; 330 W heat dissipation |
| Cooling |
Forced-air (fan life 5 years @ 20 °C) |
| Interfaces |
RS-232C, USB Type-B, open-collector outputs, opto-isolated input |
| Dimensions |
250 × 500 × 530 mm |
| Weight |
~62 kg |
| Noise |
45 dB(A) @ 1 m |
| Certifications |
UL 1778; VCCI Class A; FCC Class A |
End-of-Life & Replacement
The FW-V10-3.0K was officially discontinued in May 2019. Mitsubishi recommends the 100 V FREQUPS FW-S series—for example, FW-S10-3.0K or FW-S10L-3.0K—as direct replacements. These FW-S models carry full UL 1778 certification and offer similar or improved runtime and functionality.
Summary
The FW-V10-3.0K delivers enterprise-grade power protection in a compact chassis, combining line-interactive voltage regulation, rapid “no-break” battery switching, and robust VRLA backup into a single, space-efficient package—ideal for critical equipment in constrained spaces. For sizing guidance, quotations, or technical support on the FW-V10-3.0K, please contact Melink Automation.
