Mitsubishi UPS FW-V10-1.0K

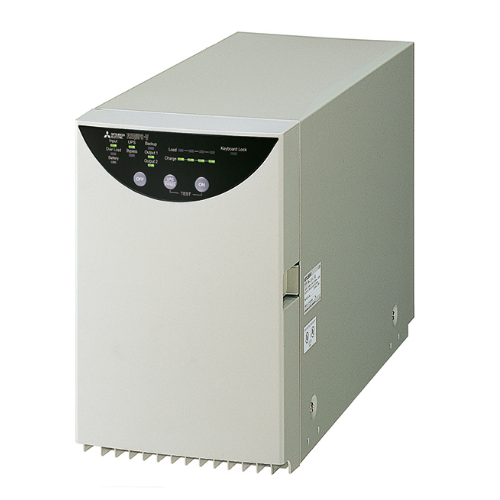

The Mitsubishi UPS FW-V10-1.0K is a tower-style, line-interactive uninterruptible power supply designed for branch offices, network closets, and control panels. Delivering 1.0 kVA / 700 W of pure sine-wave output, it bridges brownouts, surges, and momentary outages with zero-transfer “no-break” switching to safeguard critical equipment.
Key Features
-
Line-Interactive Inverter Topology
Instantaneous switchover to battery without interruption.
-
Wide Input Range & High Power Factor
Operates on 85–144 VAC (±0 %) at 47.5–63 Hz with PF ≥ 0.95.
-
Reliable VRLA Battery
Valve-regulated lead-acid battery with a 5-year expected life (@ 20 °C); provides 10 minutes of full-load runtime (25 °C) and recharges to 90 % in 8 hours.
-
Flexible Output Configuration
Six NEMA 5-15R outlets (2P15A earthed) in three independent circuits plus one M4 terminal block; selectable 100–120 VAC ± 2 % sine-wave, 300 % peak-current tolerance, ≤ 3 % THD.
-
Comprehensive Communications & Control
RS-232C (D-sub 9-pin) and USB Type-B ports, open-collector alarm outputs (UPS fault, on-battery, low battery), and optoisolated shutdown input.
-
Compact & Quiet
170 × 270 × 453 mm (W×H×D); ~21 kg; 45 dB at 1 m (A-weighted); forced-air cooling (fan life 5 years @ 20 °C).
-
Safety & Compliance
UL 1778 certified; VCCI Class A and FCC Class A EMC compliance; CE marking available on request.
Technical Specifications
Category
|
Specification
|
| Model |
FW-V10-1.0K |
| Topology |
Line-interactive inverter |
| Installation |
Tower-style |
| AC Input |
|
| • Phases / Lines |
Single-phase, 2-wire (earthed) |
| • Connector |
NEMA 5-15P (2P15A earthed) |
| • Voltage |
85–144 VAC |
| • Frequency |
47.5–63 Hz |
| • Power Factor |
≥ 0.95 |
| Battery |
|
| • Type |
Sealed VRLA lead-acid |
| • Expected Life |
5 years @ 20 °C |
| • Backup Time |
10 min @ full load (25 °C) |
| • Recharge Time |
8 hours to 90 % |
| AC Output |
|
| • Voltage |
100–120 VAC ± 2 % |
| • Modes |
Sync: mains-synchronized
Fixed: 50/60 Hz ± 0.5 % (selectable; default = Sync) |
| • Capacity |
1.0 kVA / 700 W |
| • Outlets |
6 × NEMA 5-15R (2P15A) in 3 circuits; 1 × M4 terminal block |
| • Waveform |
Pure sine-wave |
| • Overload Tolerance |
300 % peak current; 110 % for 30 s / 140 % for 3 s |
| • THD |
≤ 3 % (linear load) |
| Environment |
|
| • Ambient Temperature |
0–40 °C (recommended 20–30 °C) |
| • Humidity |
≤ 95 % RH (non-condensing) |
| • Cooling |
Forced-air (fan life 5 years @ 20 °C) |
| • Heat Dissipation |
105 W |
| Interfaces |
|
| • RS-232C |
D-sub 9-pin (male) |
| • USB |
Type-B |
| • External Signals |
Open-collector outputs (UPS alarm, on-battery, low battery); opto-isolated shutdown input |
| • Expansion Slot |
Optional interface board slot |
| Acoustics & Design |
|
| • Noise Level |
45 dB @ 1 m (A-weighted) |
| • Color |
White (Mitsubishi OA color) |
| Mechanical |
|
| • Dimensions (W×H×D) |
170 × 270 × 453 mm |
| • Weight |
~ 21 kg |
| Certifications |
UL 1778; VCCI Class A; FCC Class A |
Replacement Models
Since the FW-V10-1.0K has been discontinued, Mitsubishi recommends the following FREQUPS FW-S series as direct 100 V replacements:
Discontinued Model
|
Replacement Models
|
| FW-V10-1.0K (1.0 kVA) |
• FW-S10-1.0K
• FW-S10C-1.0K
• FW-S10L-1.0K |
For sizing guidance, quotations, or technical support on the Mitsubishi UPS FW-V10-1.0K, please contact Melink Automation.
