Mitsubishi PLC High-Speed Counting Module QD62

The Mitsubishi QD62 High-Speed Counting Module is a cutting-edge solution designed for precision counting and control in various industrial automation applications. With two channels capable of operating at selectable counting speeds of up to 200,000 pulses per second, the QD62 excels in environments requiring rapid and accurate signal processing. Its versatility in handling both single-phase and two-phase input signals, coupled with a wide counting range of -2,147,483,648 to 2,147,483,647, makes it suitable for diverse applications ranging from production line monitoring to complex machinery control. The QD62's advanced features, including preset functions, comparison outputs, and user-friendly connectivity options, ensure seamless integration into Mitsubishi PLC systems, enhancing overall system performance and reliability.

Send Inquiry

Product Description

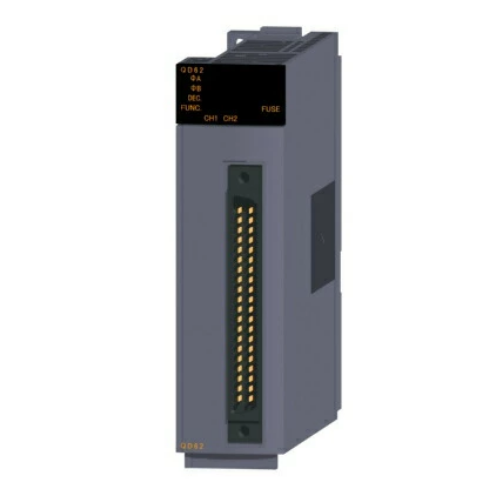

Mitsubishi PLC High-Speed Counting Module QD62

The Mitsubishi QD62 High-Speed Counting Module is a versatile and efficient counting solution designed for use in advanced automation systems. With two channels, the QD62 provides exceptional counting performance and can switch counting speeds between 10k, 100k, and 200k pulses per second. This flexibility makes the QD62 suitable for a wide range of applications.

Key Specifications:

Channels: 2 channels
Counting Speed Switch Settings: 10k, 100k, and 200k pulses per second
Count Input Signal Phase: Single-phase and two-phase input options (1x, 2x, and 4x multiplication, CW/CCW input)
Signal Level (φA, φB): DC 5/12/24V, 2-5mA
Maximum Counting Speed: Up to 200,000 pulses/second
Counting Range: 32-bit signed binary (-2,147,483,648 to 2,147,483,647)
Minimum Count Pulse Width (50% duty cycle):
- 200k pulses/s: 5µs (ON/OFF each 2.5µs)
- 100k pulses/s: 10µs (ON/OFF each 5µs)
- 10k pulses/s: 100µs (ON/OFF each 50µs)
Comparison Results: Three states for comparison; less than, equal to, or greater than preset values
External Outputs: 2 transistor (sink type) outputs per channel
Output Specifications:
- DC 12/24V, 0.5A per point, 2A per common
External Wiring Connection: 40-pin connector
Compatible Connectors: A6CON1, A6CON2, A6CON3, A6CON4 (sold separately)
I/O Points: 16 points (intelligent 16-point allocation)
DC 5V Internal Current Consumption: 0.30A
Dimensions: 98mm (H) x 27.4mm (W) x 90mm (D)
Weight: 0.11kg

The QD62 is specifically engineered to deliver precise counting operations with minimal response times, ensuring high reliability and accuracy in demanding applications. Its robust design and flexible features make the Mitsubishi QD62 an essential component for enhancing automation processes in various industrial settings. With the QD62, users can expect optimized performance, making it an excellent choice for high-speed counting requirements.
