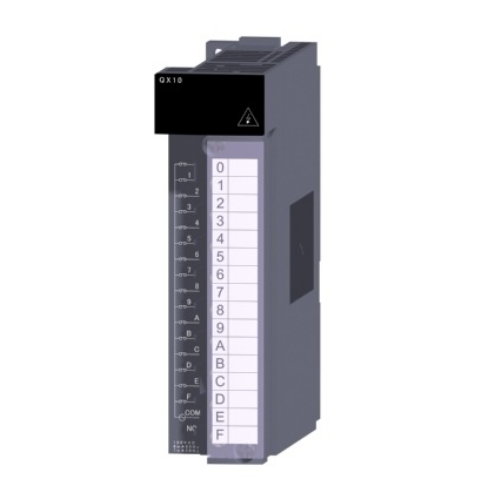

Mitsubishi PLC Input Module QX10
Product Description
The Mitsubishi QX10 PLC Input Module is an advanced 16-point AC input module tailored for Mitsubishi's Q Series programmable logic controllers (PLCs). Designed for optimal performance and reliability, the QX10 module features the following specifications:
- Input Type: AC input
- Input Points: 16 points
- Isolation Method: Optocoupler isolation for enhanced protection against electrical noise
- Rated Input Voltage: AC 100–120V (±10% to -15%), compatible with 50/60Hz operations
- Rated Input Current: Approximately 8mA (at 100VAC, 60Hz) and approximately 7mA (at 100VAC, 50Hz)
- Inrush Current: Maximum 200A within 1ms (at 132VAC)
- Response Times:
- ON to OFF: 15ms or shorter (at 100VAC, 50/60Hz)
- OFF to ON: 20ms or shorter (at 100VAC, 50/60Hz)
- Input Impedance: Approximately 12kΩ (60Hz) and 15kΩ (50Hz)
- Dielectric Strength: 1780VAC for 3 cycles (at altitudes up to 2000m)
- Insulation Resistance: 10MΩ or higher when tested with an insulation resistance tester
- Protection Rating: IP1X, ensuring adequate protection in typical environments
- Common Terminal Arrangement: 16 points/common terminal (common terminal: TB17)
- LED Status Indicator: Provides clear ON indication
- External Connection: 18-point terminal block (M3 screws)
- Wiring Compatibility: Suitable for wire gauges of 0.3 to 0.75mm², with a maximum outer diameter of 2.8mm
- Internal 5VDC Current Consumption: 50mA (when all points are ON)
- Dimensions: 98mm (H) x 27.4mm (W) x 90mm (D)
- Weight: 0.17kg
The QX10 module is an essential component for various industrial applications, providing reliable input handling in automation systems. Its robust features and compact design make the QX10 module an ideal choice for enhancing the performance of Mitsubishi PLC systems, ensuring efficient and precise control in various operational environments. With its capabilities, the Mitsubishi QX10 offers excellent versatility and efficiency, making it a preferred choice among professionals in the automation industry. Whether for new installations or upgrades, the QX10 provides the reliability and performance needed for modern automation solutions.
