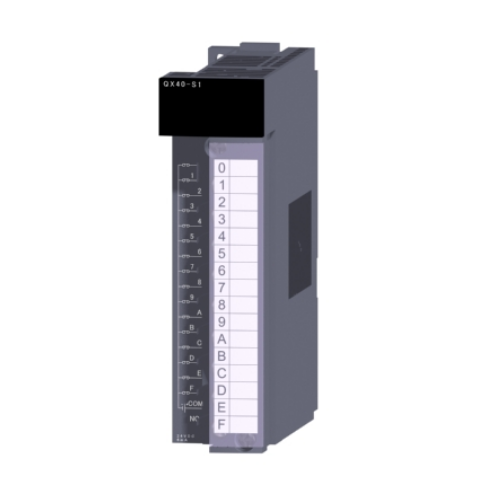

Mitsubishi PLC Input Module QX40-S1
Product Description
The Mitsubishi QX40-S1 PLC Input Module is a highly efficient DC input module designed for seamless integration within Mitsubishi's PLC systems. Featuring 16 input points, the QX40-S1 offers reliable performance for a variety of automation applications, ensuring precision and dependability.
Key Specifications:
- Input Type: DC input module (positive common terminal)
- Input Points: 16 points
- Isolation Method: Optocoupler isolation for enhanced noise immunity
- Rated Input Voltage: DC 24V (+20%/-15%, ripple within 5%)
- Rated Input Current: Approximately 4mA
- Input Rating Reduction: None
- ON Voltage / ON Current: 19V or higher / 3mA or higher
- OFF Voltage / OFF Current: 11V or lower / 1.7mA or lower
- Input Impedance: Approximately 5.6kΩ
Response Times:
- Response Time Settings: Configurable to 0.1ms, 0.2ms, 0.4ms, 0.6ms, or 1ms
- ON to OFF Response Time:
- Standard: 0.05ms, 0.15ms, 0.30ms, 0.55ms, 1.05ms
- Maximum: 0.10ms, 0.20ms, 0.40ms, 0.60ms, 1.20ms
- OFF to ON Response Time:
- Standard: 0.15ms, 0.20ms, 0.35ms, 0.60ms, 1.10ms
- Maximum: 0.20ms, 0.30ms, 0.50ms, 0.70ms, 1.30ms
Safety and Durability:
- Dielectric Strength: 560VAC for 3 cycles (up to 2000m altitude)
- Insulation Resistance: 10MΩ or higher when measured with an insulation resistance tester
- Noise Immunity: Passed 1500Vp-p noise voltage tests with a 1μs noise width and 25 to 60Hz frequency
- First Transient Noise (IEC61000-4-4): 1kV
- Protection Rating: IP2X
Additional Features:
- Common Terminal Arrangement: 16 points/common terminal (common terminal: TB17)
- I/O Points: 16 (configured according to 16-point input module settings)
- Status Indicator: ON indicator (LED)
- External Connection: 18-point terminal block (6 M3 screws)
- Wiring Compatibility: Suitable for wire gauges of 0.3 to 0.75mm², with a maximum outer diameter of 2.8mm
- Terminal Block Compatibility: R1.25 to R3 (cannot use terminals with insulation)
- 5VDC Internal Current Consumption: 60mA (standard: all points ON)
Dimensions and Weight:
- Dimensions: 98mm (H) x 27.4mm (W) x 90mm (D)
- Weight: 0.20kg
The Mitsubishi QX40-S1 module is a critical component for enhancing the capabilities of Mitsubishi PLC systems. Its compact design and robust features provide reliable input handling for various automation needs. With the QX40-S1, users can expect efficient operation, precise control, and a high level of performance in diverse industrial applications.
Whether for upgrading existing systems or for new projects, the QX40-S1 ensures a dependable and effective solution for modern automation challenges. The versatility of the QX40-S1 makes it an ideal choice for industrial settings, providing users with the tools they need to optimize their processes.
