Mitsubishi PLC Input Module QX42-S1
Product Description

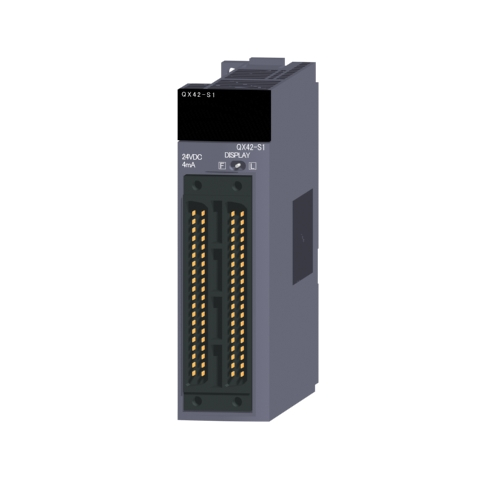

The Mitsubishi QX42-S1 PLC Input Module is a robust and efficient DC input module designed for high-performance applications within Mitsubishi's programmable logic controller (PLC) systems. This module features an impressive capacity of 64 input points, making the QX42-S1 ideal for a variety of industrial automation tasks.
Key Specifications:
- Input Type: DC input module (positive common terminal)
- Input Points: 64 points
- Isolation Method: Optocoupler isolation for improved noise immunity
- Rated Input Voltage: DC 24V (+20%/-15%, with ripple within 5%)
- Rated Input Current: Approximately 4mA
- Input Rating Reduction: Reference reduction rating chart
- ON Voltage / ON Current: 19V or higher / 3mA or higher
- OFF Voltage / OFF Current: 9.5V or lower / 1.5mA or lower
- Input Impedance: Approximately 5.6kΩ
- Response Time Settings: Configurable to 0.1ms, 0.2ms, 0.4ms, 0.6ms, or 1ms
- ON to OFF Response Time:
- Standard: 0.05ms, 0.15ms, 0.30ms, 0.55ms, 1.05ms
- Maximum: 0.12ms, 0.20ms, 0.40ms, 0.60ms, 1.20ms
- OFF to ON Response Time:
- Standard: 0.15ms, 0.20ms, 0.35ms, 0.60ms, 1.10ms
- Maximum: 0.20ms, 0.30ms, 0.50ms, 0.70ms, 1.30ms
- Dielectric Strength: 560VAC for 3 cycles (up to 2000m altitude)
- Insulation Resistance: 10MΩ or higher when measured with an insulation resistance tester
- Noise Immunity: Passed 1500Vp-p noise voltage tests with a 1μs noise width and 25 to 60Hz frequency; first transient noise according to IEC61000-4-4: 1kV
- Protection Rating: IP2X
- Common Terminal Arrangement: 32 points/common terminal (common terminals: 1B01, 1B02, 2B01, 2B02)
- I/O Points: 64 (configured according to 32-point input module settings)
- Status Indicator: ON indicator (LED)
- External Connection: 40-pin connector
- External Wiring Connectors: A6CON1, A6CON2, A6CON3, A6CON4 (optional)
- Compatible Connectors/Terminal Blocks: A6TBXY36, A6TBXY54, A6TBX70
- 5VDC Internal Current Consumption: 90mA (standard: all points ON)
- Dimensions (H x W x D): 98mm x 27.4mm x 90mm
- Weight: 0.18kg
The QX42-S1 is an essential component for expanding the input capabilities of Mitsubishi PLC systems. Its advanced features and large input capacity make the QX42-S1 suitable for a wide range of automation applications, ensuring reliable and efficient operation in diverse industrial settings. With the QX42-S1, users can expect enhanced performance, flexibility, and ease of integration into their automation infrastructure. The QX42-S1 provides a high level of performance, making it an excellent choice for various automation needs.
