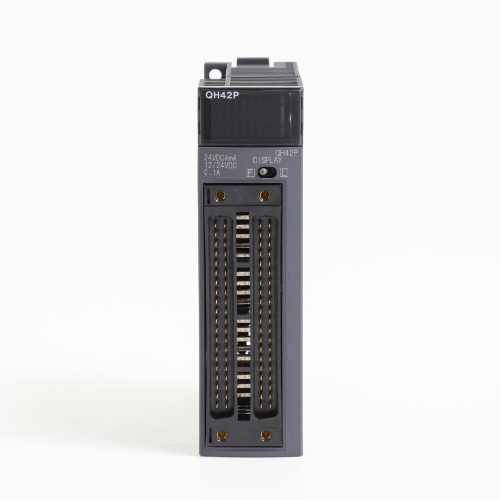

Mitsubishi PLC Input/Output Mixed Module QH42P
Product Description
The Mitsubishi QH42P Input/Output Mixed Module is a versatile and reliable solution for managing both input and output operations within Mitsubishi PLC systems. The QH42P module is designed to handle 32 DC inputs and 32 transistor outputs, making it ideal for various automation applications.
Key Specifications:
- Input Type: DC input (NMI type)
- Input Points: 32 points
- Rated Input Voltage: DC 24V (+20%/-15%, ripple within 5%)
- Rated Input Current: Approximately 4mA
- Input ON Voltage / Current: 19V or higher / 3mA or higher
- Input OFF Voltage / Current: 11V or lower / 1.7mA or lower
- Input Resistance: Approximately 5.6kΩ
- Input Response Time: Configurable at 1ms, 5ms, 10ms, 20ms, or 70ms
- Output Type: Transistor output (mixed type)
- Output Points: 32 points
- Rated Load Voltage: DC 12-24V (+/-15%)
- Maximum Load Current: 0.1A per point, with a maximum of 2A overall
- Maximum Inrush Current: 0.7A for less than 10ms
- OFF Leakage Current: Below 0.1mA
- ON Maximum Voltage Drop: DC 0.1V (typical) at 0.1A; DC 0.2V (maximum) at 0.1A
- Output Response Time: ON to OFF and OFF to ON both less than 1ms (with resistive load)
- Surge Limiter: Thermal voltage diode
- External Power Supply:
- Voltage: DC 12-24V (+20%/-15%, ripple within 5%)
- Maximum Current: 15mA per point (DC 24V, all points ON)
- Insulation Resistance: 10MΩ or higher
- Dielectric Strength: AC 560Vrms for 3 cycles (up to 2000m altitude)
- Slot Occupancy: 1 slot
- Protection Rating: IP2X
- Status Indicators: ON indicator (LED), switch status display for 32 points
- External Connection: Dual 40-pin connectors compatible with A6CON1, A6CON2, A6CON3, and A6CON4
- DC 5V Internal Current Consumption: 130mA
- Dimensions: 98mm (H) x 27.4mm (W) x 90mm (D)
- Weight: 0.2 kg
Overview
The Mitsubishi QH42P Input/Output Mixed Module combines the capabilities of input and output in a single compact unit, streamlining system design while maximizing efficiency. Its robust features, such as configurable response times, thermal protection, and high insulation resistance, make the QH42P an essential component for modern automation systems. Designed to withstand challenging industrial environments, the QH42P ensures reliable performance and longevity in various applications. With the Mitsubishi QH42P, users can enhance their automation processes with confidence.
