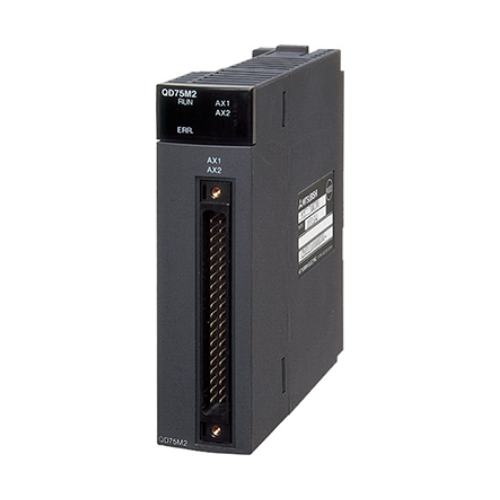

Mitsubishi PLC Positioning Module QD75M2
The Mitsubishi PLC QD75M2 positioning module is a cutting-edge dual-axis motion control solution within the renowned Mitsubishi Q series. Designed for high-precision and efficiency, the QD75M2 ensures reliable positioning, making it ideal for complex industrial automation tasks. Utilizing SSCNET cable connectivity, the QD75M2 delivers seamless integration with Mitsubishi servo systems, optimizing performance and productivity.
Key Features
- Dual-Axis Control: The QD75M2 supports simultaneous operation of two axes, enabling advanced motion profiles such as linear and circular interpolation.
- Versatile Control Units: Operates in millimeters, inches, degrees, or pulses, providing unmatched flexibility for diverse applications.
- Comprehensive Positioning Data: With the capacity to store up to 600 positioning data points per axis, the QD75M2 is suitable for intricate automation setups.
- Advanced Interpolation and Motion Control:
- Linear Interpolation: Ensures smooth straight-line movements.
- Circular Interpolation: Enables precise arc or circular path control.
- Speed and Position Switching: Facilitates dynamic transitions between speed and position modes.
- Efficient Performance: Rapid startup times (6–7 ms) and advanced acceleration/deceleration processing ensure smooth operation.
Specifications
- Output Type: Open-collector output system, ensuring reliability and durability.
- Positioning Range:
- Absolute System: ±214748364.8 μm / ±21474.83648 inches / 0–359.99999 degrees / ±2147483647 pulses.
- Incremental System: Similar range, supporting dynamic relative positioning.
- Positioning Speed:
- 0.01–20000000.00 mm/min.
- 0.001–2000000.000 inches/min.
- 0.001–2000000.000 degrees/min.
- 1–1000000 pulses/sec.
- Acceleration/Deceleration: The QD75M2 supports both trapezoidal and S-curve processing, with times adjustable from 1–8388608 ms.
- Connectivity: Equipped with a 40-pin connector for secure and reliable external connections.
SSCNET Cable Integration
The QD75M2 is compatible with SSCNET cables, including MR-HBUS□M and MR-J2HBUS□M, enabling high-speed and efficient communication with servo amplifiers. With a maximum cable length of 30 meters, the QD75M2 offers flexibility for large-scale automation setups.
Technical Specifications
- Power Consumption: 5VDC at 0.4A.
- Flash ROM: Up to 100,000 write cycles for durable data storage.
- I/O Points: Occupies 32 points within the system configuration.
- Dimensions: 98(H) × 27.4(W) × 90(D) mm.
- Weight: 0.15 kg.
Applications
The QD75M2 positioning module excels in various industrial environments, including:
- CNC machinery for precision cutting and shaping.
- Robotic systems requiring intricate motion patterns.
- Conveyor belt synchronization in manufacturing lines.
- High-speed pick-and-place systems.
- Custom automation for unique operational needs.
The Mitsubishi PLC QD75M2 positioning module combines robust design, superior functionality, and high precision, making it the ultimate solution for professionals seeking unmatched efficiency in industrial automation. With its versatile features and seamless integration capabilities, the QD75M2 ensures that your automation processes achieve their full potential.
