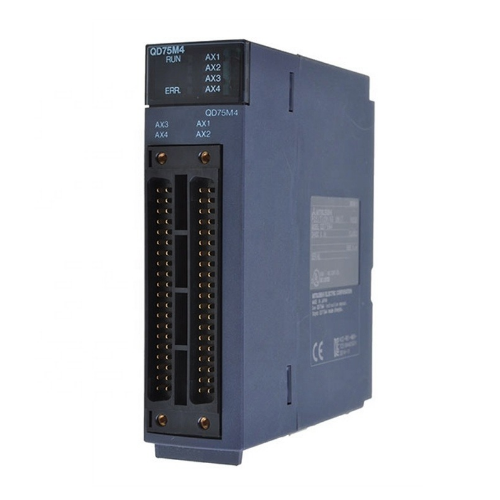

Mitsubishi PLC Positioning Module QD75M4
The Mitsubishi PLC QD75M4 positioning module is an advanced motion control unit, delivering superior precision and operational efficiency for up to 4 axes. As part of the renowned Mitsubishi Q series, the QD75M4 combines high-speed communication via SSCNET cables, versatile control capabilities, and compact design to meet the diverse needs of modern industrial automation. Engineered for accuracy, flexibility, and reliability, the QD75M4 is the ideal choice for applications requiring dynamic and synchronized motion control.
Key Features and Specifications
1. Output Type:
- SSCNET cable communication for fast, stable, and secure data exchange.
2. Control Axes:
- Simultaneous control of up to 4 axes with precision synchronization.
3. Interpolation Capabilities:
- Linear interpolation for 2, 3, or 4 axes.
- Circular interpolation for 2 axes, enabling smooth curve transitions.
4. Advanced Control Systems:
- Point-to-Point (PTP) control for precise positioning.
- Path control supporting both linear and circular motion.
- Speed control for continuous adjustments.
- Seamless speed-to-position and position-to-speed switching.
5. Positioning Data:
- 600 configurable data points per axis, supporting complex motion sequences.
6. Measurement Units:
- Supports multiple units including millimeters, inches, degrees, and pulses for application versatility.
Enhanced Positioning Features
Positioning Systems:
- Absolute and incremental systems adaptable for varied motion needs.
- Advanced velocity-position switching for real-time responsiveness.
Positioning Ranges:
- Absolute System:
- μm: -214748364.8 to 214748364.7
- Inches: -21474.83648 to 21474.83647
- Degrees: 0 to 359.99999
- Pulses: -2147483648 to 2147483647
- Incremental System:
- Supports a similar range with dynamic speed-position transitions.
Positioning Speeds:
- Up to 20,000,000 mm/min or 1,000,000 pulses/sec for high-speed operations.
Acceleration and Deceleration:
- Automatic trapezoidal and S-curve processing for smooth starts and stops.
- Configurable acceleration and deceleration times from 1 to 8388608 ms.
Connectivity and Integration
Technical and Physical Characteristics
- Power Consumption: 0.4A at 5VDC, ensuring energy-efficient operation.
- Dimensions: Space-saving 98(H) × 27.4(W) × 90(D) mm.
- Weight: Lightweight design at just 0.16 kg for easier installation.
Applications
The QD75M4 positioning module is ideal for a variety of demanding industrial scenarios, including:
- Multi-Axis Robotics: Enhance assembly and production line efficiency with precise robotic control.
- CNC Machining: Execute intricate geometries and machining paths with high precision.
- Synchronized Conveyor Systems: Streamline pick-and-place operations with real-time motion synchronization.
- Automotive Production: Optimize component manufacturing and assembly processes.
- Electronics Manufacturing: Handle delicate operations with micro-scale accuracy.
Why Choose the Mitsubishi PLC QD75M4?
- Unmatched Precision: Advanced control features ensure exact positioning for complex tasks.
- Seamless Integration: Designed to fit seamlessly into Mitsubishi’s Q series PLC platform.
- High Performance: Capable of handling fast-paced operations with accuracy.
- User-Friendly: Intuitive configuration options simplify setup and programming.
- Reliability: Robust design backed by Mitsubishi’s trusted engineering.
The Mitsubishi PLC QD75M4 positioning module is an indispensable tool for industries seeking efficient, accurate, and scalable motion control solutions. With its state-of-the-art features and proven performance, the QD75M4 ensures your automation systems operate at peak efficiency.
