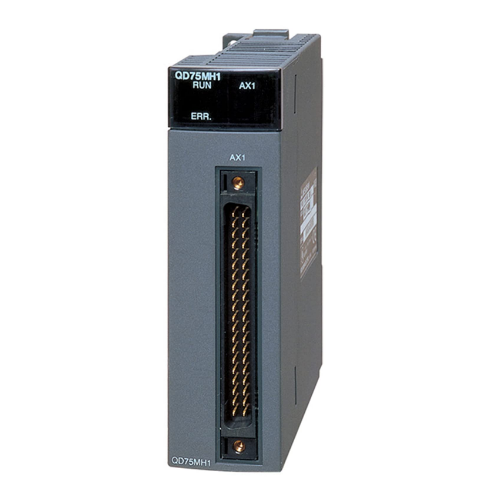

Mitsubishi PLC Positioning Module QD75MH1
The Mitsubishi PLC Positioning Module QD75MH1 is a high-precision motion control unit designed to manage single-axis positioning within Mitsubishi’s advanced automation systems. It is part of the QD75 series of modules, specifically tailored to integrate seamlessly with Mitsubishi's SSCNET III communication network, ensuring fast, reliable data transmission for complex motion control tasks. This module is ideal for applications requiring precise positioning and smooth motion, commonly found in industrial environments like robotics, conveyors, and manufacturing lines.
Key features of the QD75MH1 include:
-
Single-Axis Control: The module controls 1 axis with support for point-to-point (PTP) control, path control (linear and arc paths), speed-position switching, and position-speed switching. This flexibility allows the QD75MH1 to be used in a variety of motion control applications.
-
Positioning Range and Units: The QD75MH1 offers a wide positioning range, from -214748364.8 μm to +214748364.7 μm, with selectable units of measurement such as millimeters, inches, degrees, and pulses. The module supports both incremental and absolute positioning systems, providing versatility for different industrial applications.
-
High-Speed Control: With a command speed range from 0.01 mm/min to 20,000,000 mm/min, the QD75MH1 ensures precise control over a wide range of motion speeds, allowing it to accommodate high-speed, high-accuracy requirements.
-
Advanced Motion Profiles: The module supports automatic trapezoidal acceleration/deceleration as well as S-curve acceleration/deceleration, ensuring smooth motion with minimal mechanical stress, essential for applications that require high precision.
-
Data Storage and Backup: The QD75MH1 can store up to 600 positioning data points for each axis, which can be programmed and stored via external devices or the host controller. Parameter and positioning data are saved in flash ROM, ensuring reliability with no need for battery backups.
-
Connectivity and Integration: The QD75MH1 integrates easily into existing systems using SSCNET III cables, with flexible connection options for a variety of cable lengths (up to 50 meters), allowing it to be used in a wide range of configurations and system sizes. It also supports a 40-pin external connection system for simple integration.
-
Compact Design: With dimensions of 98 mm (H) x 27.4 mm (W) x 90 mm (D) and a weight of just 0.15 kg, the QD75MH1 is designed to be compact and easy to install in space-constrained environments.
The Mitsubishi QD75MH1 positioning module is a powerful, reliable solution for managing precise, high-speed motion control tasks in automated systems. It ensures seamless integration with Mitsubishi’s servo systems and PLCs, providing exceptional performance in various industrial applications, from high-precision manufacturing to complex robotics tasks.
