Mitsubishi PLC Power Module Q61P-A2
Product Description

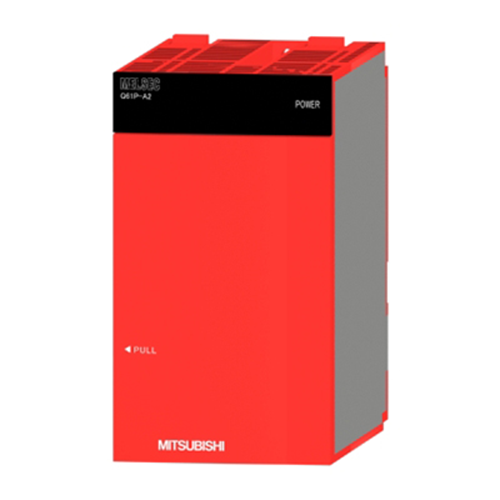

The Mitsubishi PLC Power Module Q61P-A2 is a high-performance power supply designed specifically for Mitsubishi's programmable logic controllers (PLCs). This module is engineered to ensure stable and efficient power delivery to connected PLC systems, enhancing their overall performance and reliability.
Key Features:
- Model: Q61P-A2
- Compatibility: Suitable for Q3□B, Q3□DB, and Q6□B base units, allowing for versatile integration within various Mitsubishi PLC configurations.
- Input Voltage: Operates on AC200-240V with a tolerance of -15% to +10%, making it adaptable to different power supply conditions.
- Input Frequency: Compatible with both 50Hz and 60Hz inputs, offering flexibility for various applications.
- Input Power Factor: Ensures minimal distortion with an input voltage distortion rate of 5% or less, promoting energy efficiency.
- Maximum Apparent Power: Capable of handling up to 105VA, accommodating demanding applications.
- Inrush Current: Limited to 20A for 8ms, protecting the system from sudden power surges.
Output Specifications:
- Rated Output Current: Provides a reliable DC5V output with a capacity of 6A, ensuring sufficient power for connected devices.
- Overcurrent Protection: Equipped with overcurrent protection that activates at 6.6A or above, safeguarding connected components from damage.
- Overvoltage Protection: Features overvoltage protection within the range of 5.5V to 6.5V, ensuring safe operation under varying load conditions.
Performance Metrics:
- Efficiency: Exceeds 70%, ensuring that power is utilized effectively while minimizing waste.
- Allowable Momentary Power Interruption: Can tolerate interruptions of up to 20ms, enhancing system resilience.
Isolation and Safety:
- Dielectric Strength: Maintains a dielectric strength of AC2300V for 1 minute between input and output circuits, ensuring safe operation under high-voltage conditions.
- Insulation Resistance: Offers insulation resistance of 10MΩ or higher, enhancing electrical safety.
Indicators and Output Connections:
- Operating Indicator: LED indicators show normal operation (green light) and abnormal conditions (off), allowing for easy monitoring.
- ERR Output Contact: Provides a DC24V output at 0.5A for error indication, facilitating troubleshooting.
Mechanical Specifications:
- Dimensions:
- Height: 98mm
- Width: 55.2mm
- Depth: 90mm
- Weight: 0.31kg, making it lightweight and easy to install.
- Connection Method: Uses a screw terminal block (M3.5 screws) for secure connections.
The Mitsubishi Q61P-A2 Power Module is an essential component for enhancing the functionality and reliability of Mitsubishi PLC systems. Its robust design and advanced safety features make it ideal for a wide range of industrial applications, ensuring consistent performance in demanding environments.
