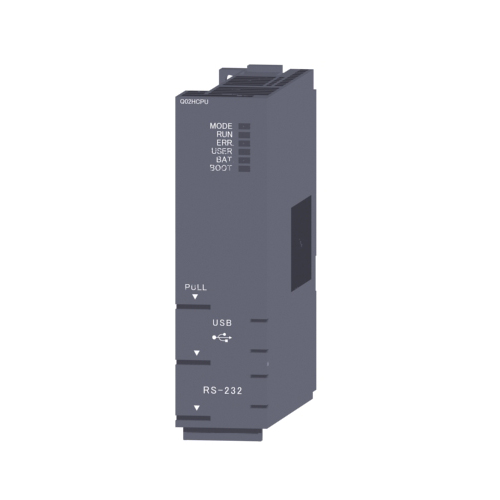

Mitsubishi PLC Q Series CPU Module Q02HCPU

The Mitsubishi PLC Q Series Module Q02HCPU is an advanced control unit that integrates cutting-edge technology for efficient industrial automation. Engineered for flexibility and scalability, the Q02HCPU supports a range of programming languages, including ladder logic and structured text, allowing users to tailor their applications to specific operational needs. With a robust processing speed, the module can execute instructions with minimal delay, ensuring responsive and reliable control over various automated processes. Additionally, the Q02HCPU boasts an extensive memory capacity, accommodating complex programs and multiple I/O devices, making it suitable for diverse applications in manufacturing, packaging, and process control. Its user-friendly features and compatibility with other Q Series modules provide a streamlined experience for system integration and maintenance.

Product Description

Mitsubishi PLC Q Series CPU Module Q02HCPU

The Mitsubishi PLC Q Series Module Q02HCPU is a cutting-edge CPU module engineered to deliver exceptional performance and reliability in industrial automation applications. This module is integral to the Q Series platform, renowned for its flexibility and scalability, making it suitable for a wide array of control and monitoring tasks.

Key Features:

High-Speed Processing:
- The Q02HCPU boasts impressive processing speeds, executing sequence instructions at 34ns (LD X0) and 102ns (MOV D0 D1), ensuring rapid response times for demanding applications.
Versatile Programming Capabilities:
- The Q02HCPU supports multiple programming languages, including relay symbol language, logic symbol language, MELSAP3 (SFC), MELSP-L, function blocks, and structured text (ST), allowing users to select the most suitable language for their specific needs.
Flexible Memory Options:
- The Q02HCPU offers a substantial program capacity of 28K steps (112K bytes) and supports external memory cards (up to 2M bytes for RAM, 4M bytes for Flash, and 32M bytes for ATA). This flexibility allows for extensive programming and data handling.
Robust I/O Management:
- With a refresh I/O control method, the Q02HCPU can manage up to 8192 input/output points and 4096 dedicated I/O points, accommodating complex system configurations seamlessly.
Adaptable Scanning Time:
- Users can set the constant scan time of the Q02HCPU between 0.5ms to 2000ms, allowing for tailored performance based on application requirements.
Integrated Diagnostic and Monitoring Features:
- The Q02HCPU includes intelligent features for system diagnostics, enabling users to monitor performance and troubleshoot issues effectively.
Compact and Efficient Design:
- The Q02HCPU measures 98mm in height, 27.4mm in width, and 89.3mm in depth, with a lightweight design of just 0.20kg, facilitating easy integration into control panels.
Reliable Power Consumption:
- The Q02HCPU operates with a DC5V internal current consumption of 0.64A, ensuring efficient energy use without compromising performance.

Conclusion:

The Mitsubishi PLC Q Series Module Q02HCPU is a premier choice for engineers and system integrators seeking a high-performance, reliable, and flexible solution for their automation needs. Its advanced features and capabilities make it suitable for a diverse range of applications, from manufacturing to process control, ensuring seamless operations and enhanced productivity. With the Q02HCPU, users can leverage the latest in automation technology to optimize their systems and achieve superior results.
