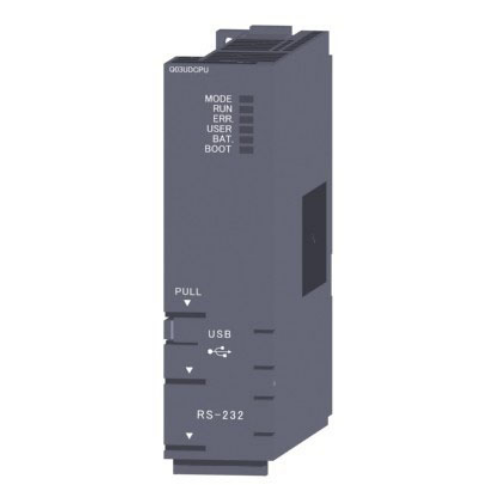

Mitsubishi PLC Q Series CPU Module Q03UDCPU

The Mitsubishi PLC Q Series CPU Module Q03UDCPU is a high-performance controller designed to provide efficient and reliable control for a wide range of industrial automation applications. Part of Mitsubishi's versatile Q Series family, this CPU module offers exceptional processing speed, expansive memory options, and scalable I/O capabilities, making it suitable for complex systems requiring advanced control and integration.

With the ability to handle large-scale processes, the Q03UDCPU is ideal for industries such as manufacturing, robotics, process control, and system integration. It supports multiple programming languages, providing flexibility for engineers and developers, while its high-speed processing capabilities ensure real-time performance for fast-paced applications.

The module is designed with energy efficiency in mind, offering compact dimensions and low power consumption. Its modular design allows for easy expansion, making it an excellent choice for systems that require scalability, whether you're building a new automation solution or upgrading an existing one. With robust I/O capabilities and memory flexibility, the Q03UDCPU delivers reliable and scalable performance to meet the growing demands of modern industrial operations.

Product Description

The Mitsubishi PLC Q Series CPU Module Q03UDCPU is a high-performance programmable logic controller designed to meet the needs of complex automation and control systems. As part of the Q Series family, the Q03UDCPU offers enhanced speed, flexibility, and reliability, making it ideal for a wide range of industrial applications, including manufacturing, process control, and system integration.

Key Features

High-Speed Processing: The Q03UDCPU boasts ultra-fast processing speeds, such as 20ns for LD X0 and 40ns for MOV D0 D1, ensuring minimal delay and precise control for high-speed operations.
Large Program Capacity: With a program capacity of 30k steps (120k bytes), the Q03UDCPU can handle complex control tasks and large-scale applications with ease.
Advanced I/O Control: The module supports 8192 soft element points and 4096 I/O points, offering flexibility in connecting various devices and sensors, making it suitable for applications that require extensive I/O configurations.
Multiple Programming Languages: The Q03UDCPU supports a variety of programming languages to cater to different user needs:
- Relay Symbol Language
- Logic Symbol Language
- MELSAP3 (SFC)
- MELSP-L
- Function Blocks
- Structured Text (ST)
Flexible Memory Options: It offers a wide range of memory storage options, including:
- Program Memory (120k bytes) for storing control logic.
- RAM Storage (up to 8M bytes) for data handling.
- ROM Storage (up to 32M bytes) for long-term storage of critical data.
- Standard RAM and ROM for general-purpose memory tasks.
Expandable System: The Q03UDCPU supports up to 7 expansion levels for the GOT (Graphic Operation Terminal) and allows up to 64 I/O modules, offering flexibility for large, complex systems.
Energy Efficient: With a DC5V internal power consumption of only 0.33A, the module is designed to be energy-efficient, helping to reduce operational costs.
Compact Design: The CPU module is compact and lightweight, measuring 98mm x 27.4mm x 89.3mm and weighing just 0.2kg, allowing for easy integration into various control cabinets.

Applications

The Q03UDCPU is ideal for:

Manufacturing: Automation of assembly lines, machinery, and equipment.
Process Control: Handling complex processes like temperature regulation, fluid flow, and robotics.
System Integration: Connecting various devices, sensors, and networks for seamless communication and control.
Custom Solutions: Tailored automation solutions for specific industries, such as automotive, food processing, and chemical production.

Summary

The Mitsubishi Q Series CPU Module Q03UDCPU is a powerful and versatile PLC designed to handle demanding industrial tasks. With its high-speed processing, large memory capacity, extensive I/O capabilities, and support for multiple programming languages, it offers flexibility and reliability for complex automation systems. Whether you're managing a simple process or a highly integrated manufacturing line, the Q03UDCPU provides the performance and scalability required to ensure efficient and reliable control.
