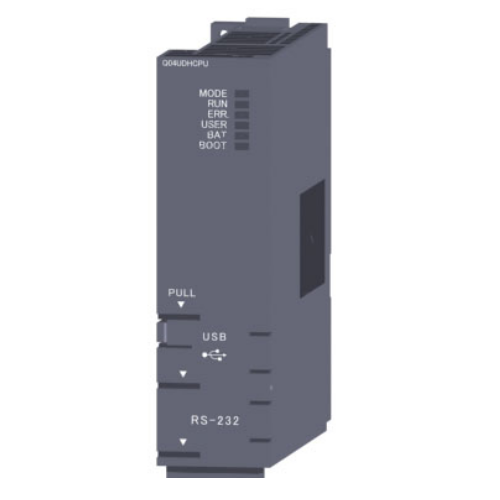

The Mitsubishi PLC Q Series CPU Module Q04UDHCPU is a high-performance, advanced control module designed for industrial automation systems requiring rapid processing, large I/O handling, and flexible communication capabilities. As part of the Q Series, the Q04UDHCPU excels in applications that demand high-speed control, scalability, and reliable communication between devices.
Key Features and Specifications
-
High-Speed Processing
- LD X0: 9.5ns
- MOV D0 D1: 19ns
The Q04UDHCPU offers ultra-fast processing speeds for critical real-time applications, ensuring high efficiency and minimal control delays.
-
I/O and Device Points
-
I/O Points: 4096
The module can handle a substantial number of I/O points, making it ideal for large and complex systems that require significant input and output configurations.
-
Input/Output Device Points: 8192
Capable of managing a vast range of connected devices, making it suitable for applications that require large-scale device integration.
-
Communication Interfaces
-
USB and RS-232 Ports: Flexible and standard communication options for connecting with peripheral devices.
-
High-Speed Multi-CPU Communication: Provides high-speed communication between multiple CPUs, which is essential for large distributed systems.
-
Memory Capacity
-
Program Capacity: 40k steps
Ample program space to store complex logic, enabling efficient management of large, intricate processes.
-
Program Memory Size: 160k bytes
A substantial program memory size ensures that the Q04UDHCPU can handle extensive program storage needs without compromising on performance.
-
Power Consumption
- DC5V Internal Power Consumption: 0.39A
The module’s low energy consumption ensures efficient operation, reducing the operational cost and environmental impact.
-
Compact Design
- Dimensions: 98mm (H) x 27.4mm (W) x 89.3mm (D)
- Weight: 0.2kg
Its small and lightweight form factor allows for easy installation and integration into space-constrained control cabinets.
-
Memory Card Interface
- The module includes a memory card interface for easy storage expansion, allowing users to add memory as needed for specific applications, ensuring flexibility in data management.
Applications
The Q04UDHCPU is designed for use in a variety of industrial and automation applications, including:
- Manufacturing Automation: Ideal for controlling assembly lines, robotic arms, and other industrial machinery.
- Process Control: Well-suited for managing chemical production, fluid handling, and temperature regulation processes.
- Distributed Systems: Perfect for multi-CPU systems requiring high-speed communication and distributed control capabilities.
- Robotics and Advanced Automation: Provides precise, high-speed control for complex robotic systems and automated processes.
Summary
The Mitsubishi PLC Q Series CPU Module Q04UDHCPU is an advanced and reliable control solution that offers high-speed processing, extensive I/O handling, and powerful communication capabilities. Its flexibility, scalability, and robust performance make it the ideal choice for demanding industrial automation tasks, large-scale systems, and distributed control applications. Whether for discrete manufacturing, process control, or robotics, the Q04UDHCPU delivers the performance and reliability required for modern automation needs.
