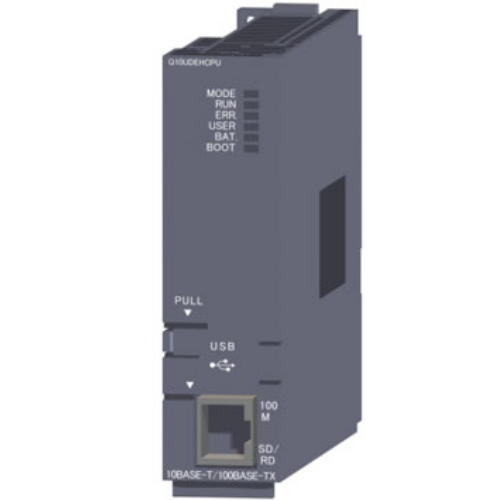

Mitsubishi PLC Q Series CPU Module Q10UDEHCPU
The Mitsubishi PLC Q Series CPU Module Q10UDEHCPU is an advanced, high-performance controller designed to meet the complex automation needs of modern industrial systems. As part of the Q Series, this module is engineered for scalability, high-speed processing, and robust communication, making it ideal for large-scale, distributed control systems. The Q10UDEHCPU is well-suited for industries that require precise, real-time control with high I/O capacity and high-speed communication capabilities.
Key Features:
-
High Processing Speed:
- LD X0: 9.5ns
- MOV D0 D1: 19ns The Q10UDEHCPU offers exceptional processing speeds, ensuring real-time decision-making and rapid execution of control tasks, which is critical for complex automation processes.
-
Large Program and Memory Capacity:
- Program Capacity: 100k steps (400k bytes)
- Program Memory (Drive 0): 400k bytes
- Standard RAM: Up to 2048k bytes
- The large program and memory capacity allow the Q10UDEHCPU to manage extensive programs and handle data from large-scale I/O systems.
-
I/O Handling:
- I/O Control Mode: Refresh mode, with direct access to I/O (DX, DY) for faster processing.
- I/O Points: 4096 points (X/Y0 to FFF)
- I/O Soft Component Points: 8192 points (X/Y0 to 1FFF) The Q10UDEHCPU can handle a significant number of I/O points, enabling the control of complex, high-density automation systems.
-
Constant Scanning:
- The module supports scanning intervals from 0.5ms to 2000ms in increments of 0.5ms, making it adaptable for systems with varying control requirements.
-
Built-in Ethernet Functionality:
- Data Transmission Speed: 100/10Mbps
- Maximum Transmission Distance: 100m
- Maximum Nodes/Connections: 4 levels for 10BASE-T and 2 levels for 100BASE-TX cascade connections.
- This built-in Ethernet functionality provides fast and reliable network communication, reducing the need for additional communication modules and simplifying system integration.
-
Multi-CPU High-Speed Communication:
- 32k bytes of high-speed communication area for multi-CPU setups, allowing efficient data exchange and synchronization between multiple processors in complex distributed control systems.
-
Scalable and Flexible:
- The Q10UDEHCPU supports a wide range of industrial applications with the ability to handle a significant number of devices, I/O points, and complex control programs. It is ideal for industries that require flexibility, scalability, and fast response times.
-
Energy Efficiency:
- Despite its powerful performance, the module operates with low power consumption of 0.49A at 5VDC, making it suitable for energy-conscious industrial environments.
-
Compact and Lightweight:
- Dimensions: 98mm x 27.4mm x 115mm
- Weight: 0.22kg Its compact design ensures it can be easily integrated into control panels or distributed control systems with space constraints.
Applications:
The Mitsubishi Q10UDEHCPU is ideal for industries requiring high-performance automation and control, including:
- Manufacturing Automation: Control of production lines, machinery, and robotic arms.
- Process Automation: Real-time control of processes in industries such as chemicals, food, pharmaceuticals, and energy.
- Robotics: High-speed, precise control of robotic systems and devices.
- Distributed Control Systems (DCS): Large-scale, decentralized control systems for power plants, water treatment facilities, and other critical infrastructure.
Conclusion:
The Mitsubishi PLC Q10UDEHCPU is a powerful, versatile, and scalable solution for complex automation systems. With its high-speed processing, extensive memory and I/O handling, and integrated Ethernet communication, it is designed to meet the demanding requirements of modern industrial applications. Whether for controlling large manufacturing systems, managing intricate processes, or coordinating multiple devices across distributed networks, the Q10UDEHCPU ensures reliable, high-performance operation in a wide range of industrial environments.
