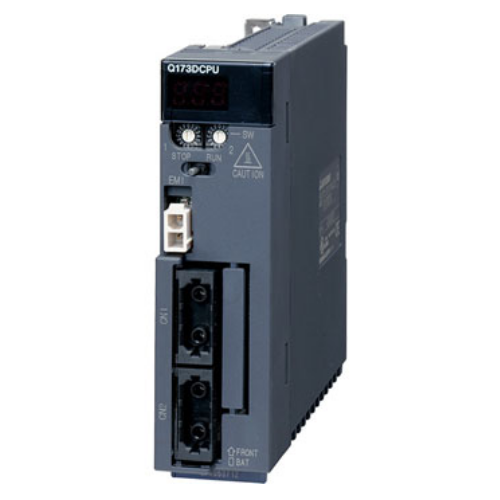

Mitsubishi Q173DCPU Motion Controller
The Mitsubishi Q173DCPU Motion Controller is an advanced, high-performance motion controller in the Mitsubishi Q Series, designed to meet the demands of modern industrial automation. With support for up to 32 axes and SSCNETⅢ communication, the Q173DCPU delivers exceptional speed, precision, and versatility for complex motion control applications.
Key Features of the Q173DCPU
1. Multi-Axis Motion Control
- Controls up to 32 axes with two systems of 16 axes each.
- Offers linear, circular, and helical interpolation for diverse motion profiles.
- Provides advanced control modes, including positioning, speed control, and synchronization.
2. High-Speed and Precision Performance
- High-speed computation cycles:
- 0.44ms for 1–6 axes, ensuring fast and precise responses.
- Supports up to 10,600 positioning points, ideal for detailed and accurate motion paths.
3. Advanced Features for Accuracy
- Includes backlash compensation, electronic gearing, and phase correction for precise motion control.
- Built-in absolute positioning system with battery backup for reliable, continuous operation.
- Supports manual pulse generators (up to 3) and synchronous encoders (up to 12) for flexible system design.
4. Flexible Connectivity
- Features SSCNETⅢ communication, enabling seamless synchronization of servo amplifiers.
- Equipped with USB and RS-232 interfaces, ensuring easy integration with PLCs and external devices.
- Compatible with a wide range of Mitsubishi peripherals, enhancing system scalability.
5. Compact and Durable Design
- Dimensions: 98mm (H) x 27.4mm (W) x 119.3mm (D).
- Lightweight at just 0.33kg, making it easy to install in space-constrained environments.
Specifications of Q173DCPU
| Specification |
Details |
| Number of Axes |
Up to 32 axes (16 per system, 2 systems) |
| Interpolation Functions |
Linear, circular, helical |
| Positioning Points |
3,200 (SV13/SV22), approx. 10,600 (SV43) |
| Computation Cycle |
0.44ms (1–6 axes), 0.88ms (7–18 axes) |
| Interfaces |
SSCNETⅢ (2 systems), USB, RS-232 |
| Program Capacity |
16k steps (SV13/SV22), 504k bytes (SV43) |
| Internal Current Consumption |
DC5V, 1.25A |
| Weight |
0.33kg |
Applications
The Q173DCPU is ideal for industries requiring high-precision and high-speed motion control, including:
- Automotive Manufacturing: Precision assembly lines and testing systems.
- Electronics: Semiconductor production and inspection equipment.
- Packaging: High-speed sorting and packaging machinery.
Why Choose the Mitsubishi Q173DCPU?
- Exceptional Performance: The Q173DCPU offers high-speed computation and advanced motion control.
- Flexible System Integration: Its compatibility with manual pulse generators and synchronous encoders allows seamless integration.
- Reliable and Robust: Designed with Mitsubishi’s renowned quality standards, the Q173DCPU ensures durability and efficiency.
- Wide Support Network: Mitsubishi provides comprehensive technical resources and customer support.
For more details about the Mitsubishi Q173DCPU, including pricing, user manuals, and technical support, please contact us today!
